Concluzia:
Eroare -P1530-(4) Ismeretlen DTC - Detected sau -P1530 AC cut-off relay - circuit malfunction Wiring, AC cut-off relay, ECM --- s-a datorat celor doua fire intrerupte pe o portiune de 10cm, din loc in loc, de la mufa mama de la compresor catre magistrala de fire care trece pe langa ventilatorare catre ECM.
Umeaza sa inlocuiesc acea portiune de fire. Caut niste cabluri electrice cu izolatie rezistenta la temperatura, asemanatoare cu cele originale.
- Daci
- ****
- 1,388 mesaje
- din 03 Mar 2007
- Insignia 2011 A20DTH
- Arad
Daci
- Mesaje scrise: 1,388
- Locatie: Arad
- Masina: Insignia 2011 A20DTH
- Status: Offline
- Cont inregistrat: 03 Mar 2007
- Mesaj Privat
Eroarea mi-a aparut de cand mi-au aparut problemele la clima. Am schimbat compresorul de clima, am umplut instalatia cu freon si ulei de compresor, presiunea nu scade, deci nu pierde freon, insa eroarea "P1530 (4) Releu pentru cuplaj clima - tensiune prea mica" imi reapare si dupa ce o sterg cu Op-com -ul.
As vrea sa ma ajutati cu o solutie de a scapa de eroare, sau sa imi spuneti daca influenteaza cu ceva daca ramane. Ca informatie suplimentara, acum o luna mi-a fost reconditionat ECU la Mihai in Bucuresti, zic asta pentru ca eroarea imi apare la diagnoza pe motor, nu pe clima.
Daca discutia nu isi are locul aici, atunci rog un moderator sa o mute sau sa o stearga, dar macar pana sambata sa o lasati (ca sambata plec).
Multumesc!
Dacian
- DB77AAA
- *******
- 6,628 mesaje
- din 19 Jan 2007
- Vectra 2005 Z19DTH 200CP
- Dambovita
DB77AAA
- Mesaje scrise: 6,628
- Locatie: Dambovita
- Masina: Vectra 2005 Z19DTH 200CP
- Status: Offline
- Cont inregistrat: 19 Jan 2007
- Mesaj Privat
- Daci
- ****
- 1,388 mesaje
- din 03 Mar 2007
- Insignia 2011 A20DTH
- Arad
Daci
- Mesaje scrise: 1,388
- Locatie: Arad
- Masina: Insignia 2011 A20DTH
- Status: Offline
- Cont inregistrat: 03 Mar 2007
- Mesaj Privat
Ai AC automat? Daca da, eroarea ar fi pe modulul de comanda AC
Da, am AC automat si compresorul porneste. Acel modul de comanda AC la care faci referire e acel ECM sau HACM despre care s-a mai discutat pe forum? Daca e altul, poti sa imi mentionezi unde se afla pozitionat? Si daca se schimba usor, ca eu sunt la servici si nu prea pot sa plec, iar daca este ceva de genul scos-bagat atunci imi iau de la dezmembrari cand ies de la servici si il schimb. Multumesc!
P.S.: scriu de pe telefon cu Symbian, deci sunt cam restrictionat in anumite comenzi pe internet, de aceea doresc mai multe detalii. Multumesc de intelegere!
L.E.: modulul de comanda AC e cumva cel din habitaclu? Adica e comanda cu butoane din bord? Vad ca is cam "praf" la electronica... 😊 Pe mine m-a dus gandul la releele de la AC din compartimentul motorului.
- Daci
- ****
- 1,388 mesaje
- din 03 Mar 2007
- Insignia 2011 A20DTH
- Arad
Daci
- Mesaje scrise: 1,388
- Locatie: Arad
- Masina: Insignia 2011 A20DTH
- Status: Offline
- Cont inregistrat: 03 Mar 2007
- Mesaj Privat
Am si eu eroarea P1530 (4) "Releu pentru cuplaj clima - tensiune prea mica" la Vectra B cu motor Z16XE cu clima automata. Acum cateva zile am schimbat compresorul, iar eroarea a ramas stocata si nu pot sa o sterg cu Op-com -ul.
@GL10PEL, nu ai mai revenit cu rezultatele, te rog sa ne spui si noua daca ai rezolvat problema dupa ce ai schimbat firele.
- GL10PEL
- ***
- 762 mesaje
- din 18 Aug 2006
- Astra 2011 A16XER
- Alta tara
GL10PEL
- Mesaje scrise: 762
- Locatie: Alta tara
- Masina: Astra 2011 A16XER
- Status: Offline
- Cont inregistrat: 18 Aug 2006
- Mesaj Privat
st.alexx
- Mesaje scrise: 81
- Locatie: Bucuresti
- Masina: Astra 2006 1.9DTH
- Status: Offline
- Cont inregistrat: 24 Jun 2013
- Mesaj Privat
2. Am freon, dar nu cupleaza compresorul.
a) De cele mai multe ori, siguranta termica a bobinei compresorului este arsa. Compresorul porneste daca e arsa siguranta?Daca pun compresorul pe direct ar trebui sa pornesca dak e arsa siguranta bobinei?
b) Senzor de presiune AC defect, se vede imediat pe tester; VERIFICAT ESTE OK
c) siguranta arsa, rar; VERIFICAT ESTE OK
d) modul comanda defect, rar; VERIFICAT ESTE OK
e) problema "pe fire", rar. ???
- GL10PEL
- ***
- 762 mesaje
- din 18 Aug 2006
- Astra 2011 A16XER
- Alta tara
GL10PEL
- Mesaje scrise: 762
- Locatie: Alta tara
- Masina: Astra 2011 A16XER
- Status: Offline
- Cont inregistrat: 18 Aug 2006
- Mesaj Privat
zrb17
- Mesaje scrise: 12
- Locatie: Alta tara
- Masina: Vectra 2005 Z16XE
- Status: Offline
- Cont inregistrat: 03 Jun 2016
- Mesaj Privat
Can anybody, please, tell me, what was reason of that error? What was wrong? I tried to translate it, but I failed (we all know how accurate the google translator is...).
I have this problem on my Vectra C 1.6 16.V 74kW 2005 (non-facelift) with manual A/C. My problem is, that there is no voltage on the A/C clutch relay, the error is:
P1530 - A/C Relay Voltage Low
(06) - Present
It works only sometimes (like 10-15% when I turn on the AC it really works. But mostly 85-90% it does not work, even when LED in cockpit shows, that A/C should be working - but it is NOT). When it works, it works fine. Or when I short (connect) power pins of the relay, then clutch turns the compressor ON and A/C works fine. So probably there is no problem with compressor / clutch and these thing. I have enough gas inside it and pressure is OK as well. So it seems like there is only problem with getting that +12V on the A/C relay.
Is there anybody who had this problem? How did you solve it? Summer and hot days are comming and I don't want another summer without A/C 😢 . THANK YOU A LOT!
- catastefan
- *******
- 5,918 mesaje
- din 21 Jan 2012
- Corsa 2001 Z12XE
- Galati
catastefan
- Mesaje scrise: 5,918
- Locatie: Galati
- Masina: Corsa 2001 Z12XE
- Status: Offline
- Cont inregistrat: 21 Jan 2012
- Mesaj Privat
zrb17
- Mesaje scrise: 12
- Locatie: Alta tara
- Masina: Vectra 2005 Z16XE
- Status: Offline
- Cont inregistrat: 03 Jun 2016
- Mesaj Privat
A/C Pressure (Air Conditioning) 960 kPa (it raised up to 1200kPa)
A/C Pressure (Air Conditioning) 1.0 V
A/C Relay (Air Conditioning) Inactive (even when I shorted / connected power pins of relay, this was still INACTIVE)
A/C Cutoff Mode (Air Conditioning) System OK
A/C Information Switch Inactive (when I pressed the A/C button this changed to "Active").
I believe there are some informations in this thread, but I can't translate it correctly, even with google translator. It translates some words absolutely incorrectly so I can't understand point of the text.
- catastefan
- *******
- 5,918 mesaje
- din 21 Jan 2012
- Corsa 2001 Z12XE
- Galati
catastefan
- Mesaje scrise: 5,918
- Locatie: Galati
- Masina: Corsa 2001 Z12XE
- Status: Offline
- Cont inregistrat: 21 Jan 2012
- Mesaj Privat
- iulian1971
- *******
- 7,053 mesaje
- din 21 Dec 2006
- Ilfov
iulian1971
- Mesaje scrise: 7,053
- Locatie: Ilfov
- Masina:
- Status: Offline
- Cont inregistrat: 21 Dec 2006
- Mesaj Privat
zrb17
- Mesaje scrise: 12
- Locatie: Alta tara
- Masina: Vectra 2005 Z16XE
- Status: Offline
- Cont inregistrat: 03 Jun 2016
- Mesaj Privat

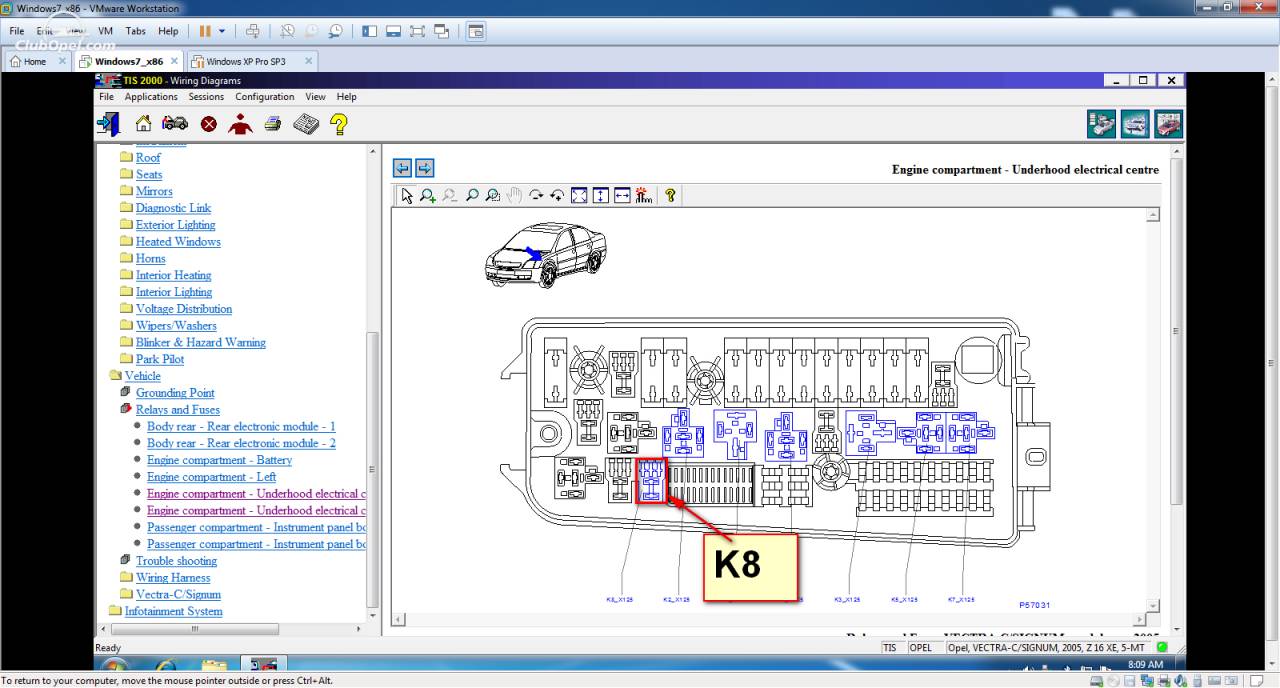

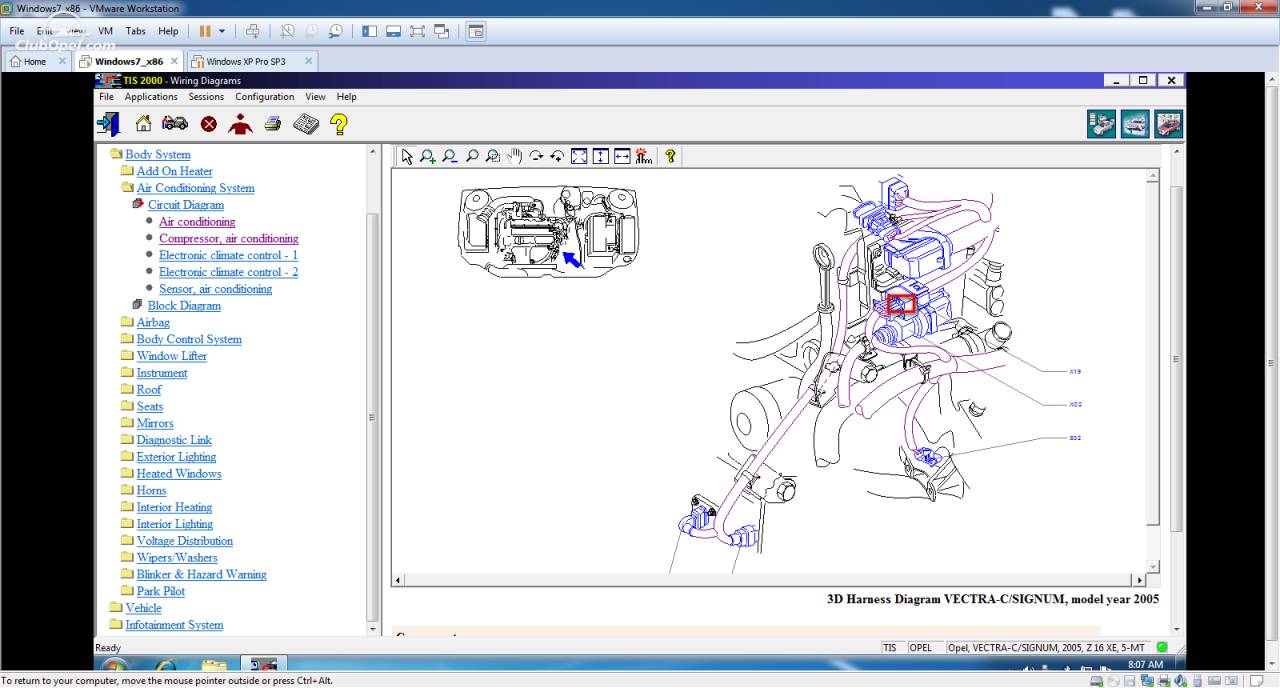

I will check conector X19. But what am I looking for? Some oxidation? Damaged cable?

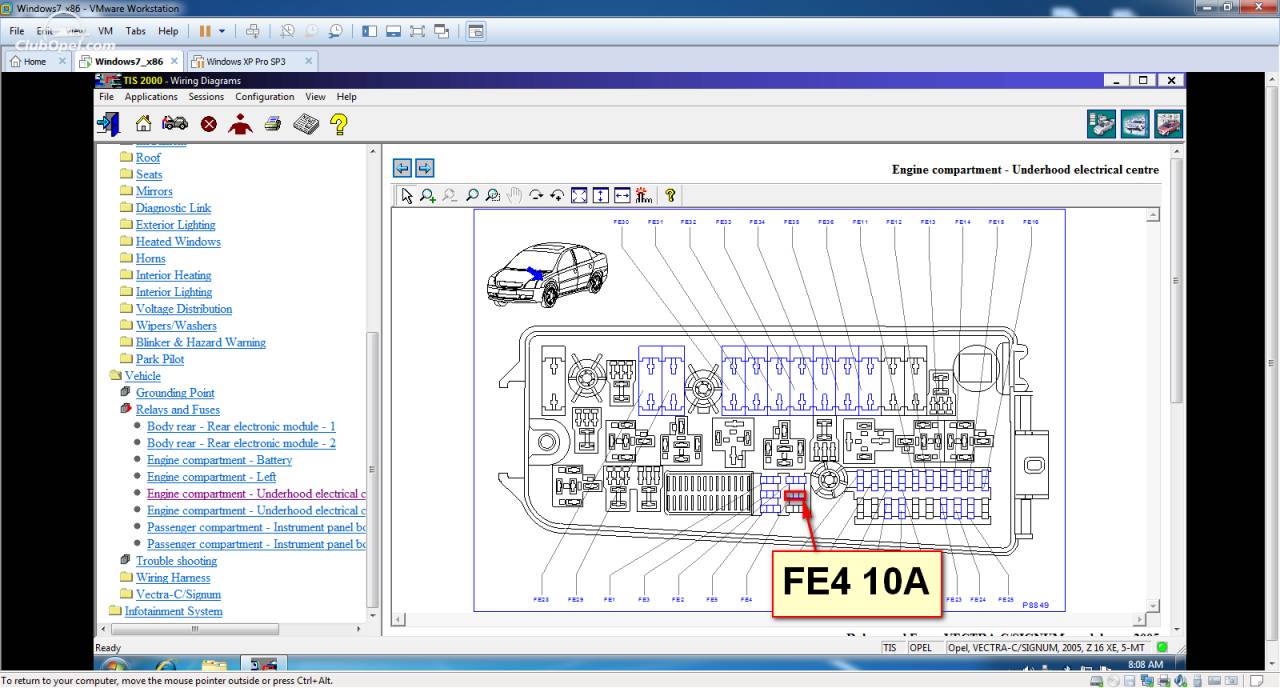

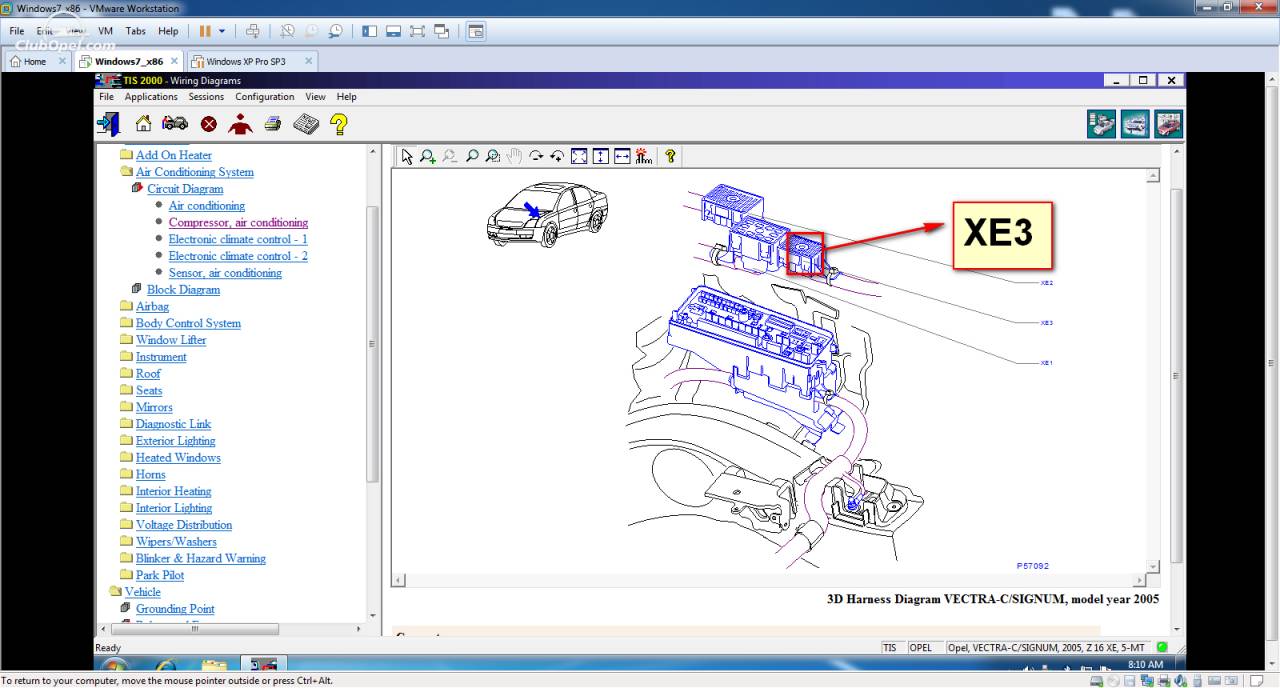

Where can I find "ECM: 51 (XC4) / UEC: 30 (XE3) "? What wire is it? I'm sorry, but I don't have TIS or / and any manuals with circuit boards and connections. And yes, it is Z16XE engine.
I checked wire from the UEC to A/C clutch. It is ok - 0ohm. A/C pressure sensor seems to be OK as well - it has 5V on it. The only problem is, that I cant get 12V on A/C relay's control pins. What are requirements for the A/C to work? Does it require "god values" from some sensors to work? Or it is just mechanical - I press A/C button, it closes the circuit and switches the relay ON? Thank you.
- GL10PEL
- ***
- 762 mesaje
- din 18 Aug 2006
- Astra 2011 A16XER
- Alta tara
GL10PEL
- Mesaje scrise: 762
- Locatie: Alta tara
- Masina: Astra 2011 A16XER
- Status: Offline
- Cont inregistrat: 18 Aug 2006
- Mesaj Privat
zrb17, ai verificat conexiunile merg la cuplajului compresorului AC? În cazul meu, aceste fire au fost parțial deteriorate și a fãcut un contact imperfect, prin urmare, AC lucra 50% nu, 50% da, chiar dacã LED-ul AC în buton tabloul de bord era pornit. Verifica pornind de la compresorul AC spre traseul principal de cabluri.
zrb17
- Mesaje scrise: 12
- Locatie: Alta tara
- Masina: Vectra 2005 Z16XE
- Status: Offline
- Cont inregistrat: 03 Jun 2016
- Mesaj Privat
My problem is, that there is no voltage on the relay itself - so there is not voltage to activate relay > that should activates clutch = compressor. When I do it manualy (I take short wire and connect power pins of the A/C relay base > that's what relay should do!) A/C works fine, it is really cold inside. So problem is, that there is no voltage on the A/C relay. Why?
- catastefan
- *******
- 5,918 mesaje
- din 21 Jan 2012
- Corsa 2001 Z12XE
- Galati
catastefan
- Mesaje scrise: 5,918
- Locatie: Galati
- Masina: Corsa 2001 Z12XE
- Status: Offline
- Cont inregistrat: 21 Jan 2012
- Mesaj Privat
zrb17
- Mesaje scrise: 12
- Locatie: Alta tara
- Masina: Vectra 2005 Z16XE
- Status: Offline
- Cont inregistrat: 03 Jun 2016
- Mesaj Privat
- catastefan
- *******
- 5,918 mesaje
- din 21 Jan 2012
- Corsa 2001 Z12XE
- Galati
catastefan
- Mesaje scrise: 5,918
- Locatie: Galati
- Masina: Corsa 2001 Z12XE
- Status: Offline
- Cont inregistrat: 21 Jan 2012
- Mesaj Privat
zrb17
- Mesaje scrise: 12
- Locatie: Alta tara
- Masina: Vectra 2005 Z16XE
- Status: Offline
- Cont inregistrat: 03 Jun 2016
- Mesaj Privat
I have only one (big) cooling fan.

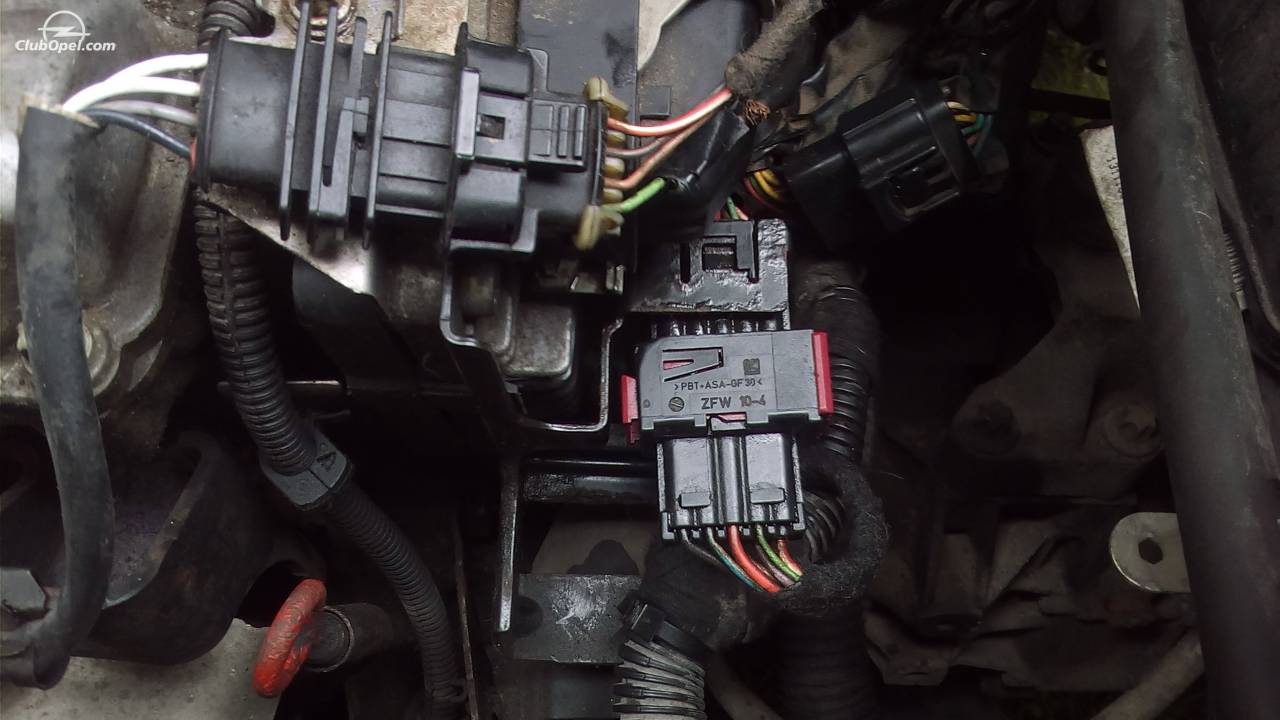

I have checked the X19 connector, it looks ok. Just as prevention I took contact spray and cleaned all the contacts around it (ECU, sonda lambda etc...).
And then someting really WEIRD happened. There was voltage on the control pins of the A/C relay but there was NO voltage on the power pins of this relay! What the hell?! So now relay worked (control pins), but had nothing to connect (ground) - there was no voltage on the powers pins (the turn off the A/C clutch).
So I touched and moved / shaked cables around the X19 connector. And while I was moving with these cables sometimtes there was voltage on the power pins of the relay! And while I was doing this the voltage on the control pins of relay disappeared again!
Damn! How the hell is this possible? I believe there is no problem with all that cables, it would be extremely hard to find out which cable is damaged... Ahh what can I do now? 😢 Thank you dear friends.
