Vauxhall Zafira B (2005 - 2014) fuses

---

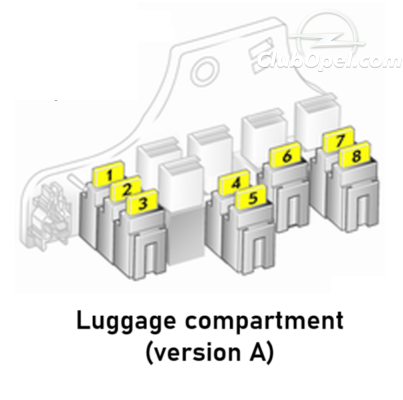

Load compartment fuse box (type A)

• The fusebox is on the left in the luggage compartment behind a cover. To open the compartment, push locking tabs forwards and remove cover.
• Depending on the equipment version, there are two different fuseboxes in the luggage compartment for differing electrical circuits: version A and version B.

No.	Circuit	Amps
1	Front fog lights	15 A
2	Rear socket	15 A
3	Luggage compartment socket	15 A
4	Reversing lights	7.5 A
5	Rear power windows	30 A
6	Air conditioning system	10 A
7	Front power windows	30 A
8	Heated exterior mirrors	7.5 A

---

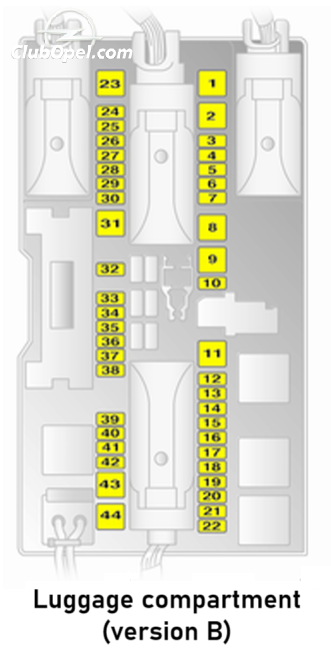

Load compartment fuse box (type B)

• The fusebox is on the left in the luggage compartment behind a cover. To open the compartment, push locking tabs forwards and remove cover.
• Do not store any objects behind the cover.
• Depending on the equipment version, there are two different fuseboxes in the luggage compartment for differing electrical circuits: version A and version B

No.	Circuit	Amps
1	Front power windows	25 A
2	-
3	Instruments	7.5 A
4	Heating, air conditioning system, electronic climate control	5 A
5	Airbags	7.5 A
6	-
7	-
8	-
9	-
10	-
11	Heated rear window	25 A
12	Rear window wiper	15 A
13	Parking distance sensors	5 A
14	Heating, air conditioning system	7.5 A
15	-
16	Seat occupancy recognition, Open&Start system	5 A
17	Rain sensor, air quality sensor, tyre pressure monitoring system (TPMS), interior mirror	5 A
18	Instruments, switches	5 A
19	-
20	CDC	10 A
21	Heated exterior mirrors	7.5 A
22	-
23	Rear power windows	25 A
24	Diagnostics plug	7.5 A
25	-
26	Electrically retractable/foldable exterior mirrors	7.5 A
27	Ultrasonic sensor, anti-theft alarm system	5 A
28	-
29	Cigarette lighter, front power outlet	15 A
30	Rear power outlet	15 A
31	-
32	-
33	Open&Start system	15 A
34	-
35	Rear power outlet	15 A
36	Socket for towing equipment	20 A
37	-
38	Central locking system, terminal 30	25 A
39	Left seat heating	15 A
40	Right seat heating	15 A
41	-
42	-
43	-
44	-

---

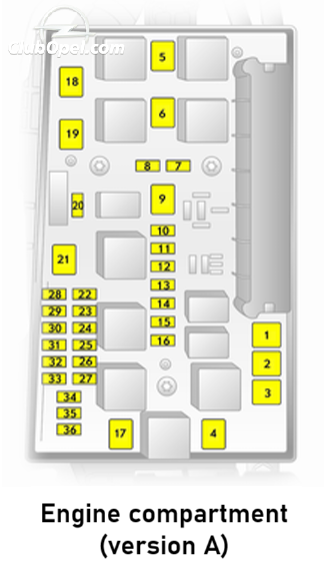

Engine compartment fuse box (type A)

• Insert a screwdriver into the opening as far as it will go and tilt it sideways. Open the cover upwards and remove.
• Depending on the equipment variant there are two different fuse assignments in the engine compartment fusebox that cover different power circuits; check the luggage compartment fuse box to determine which type of fuse box (A or B) your vehicle is equipped with.
• ¹⁾ Different ratings depending on engine and equipment level.

No.	Circuit	Amps
1	ABS	20 A
2	ABS	30 A
3	Interior fan climate control system	40 A
4	Interior fan, heating, air conditioning system	40 A
5	Radiator fan 11) (depending on engine)	30 A 40 A
6	Radiator fan 21) (depending on engine)	20 A 30 A 40 A
7	Central locking system	20 A
8	Windscreen washer system, tailgate	10 A
9	Heated rear window, heated exterior mirror	30 A
10	Diagnostics plug	7.5 A
11	Instruments	7.5 A
12	Mobile telephone, Infotainment system, display	7.5 A
13	Courtesy light	5 A
14	Windscreen wiper	30 A
15	Windscreen wiper	30 A
16	Horn, ABS, brake light switch, air conditioning system	5 A
17	Diesel fuel filter or air conditioning system	25 A 20 A
18	Starter	25 A
19	-
20	Horn	15 A
21	Engine electronics	20 A
22	Engine electronics	7.5 A
23	Headlight range adjustment	5 A
24	Fuel pump	15 A
25	-
26	Engine electronics	10 A
27	Heating, air conditioning system, air quality sensor	7.5 A
28	-
29	Power steering (EHPS)	5 A
30	Engine electronics	10 A
31	Rear window wiper	15 A
32	Brake light switch	5 A
33	Headlight range adjustment, light switch, clutch switch, instrument, driver's door module	5 A
34	Control unit, steering column module	7.5 A
35	Infotainment system	20 A
36	Cigarette lighter, front power outlet	15 A

---

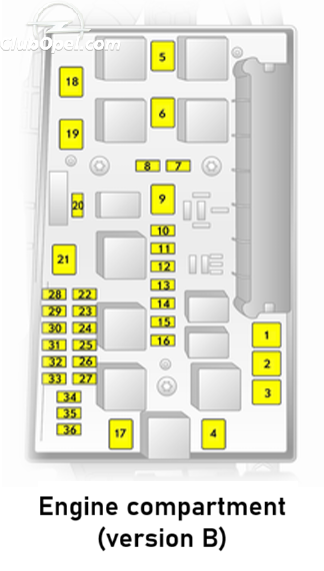

Engine compartment fuse box (type B)

• Insert a screwdriver into the opening as far as it will go and tilt it sideways. Open the cover upwards and remove.
• Depending on the equipment variant there are two different fuse assignments in the engine compartment fusebox that cover different power circuits; check the luggage compartment fuse box to determine which type of fuse box (A or B) your vehicle is equipped with.
• ¹⁾ Different ratings depending on engine and equipment level.

No.	Circuit	Amps
1	ABS	20 A
2	ABS	30 A
3	Interior fan electronic climate control	40 A
4	Interior fan heating and air conditioning system	40 A
5	Radiator fan 11)	30 A 40 A
6	Radiator fan 21)	20 A 30 A 40 A
7	Windscreen washer system	10 A
8	Horn	15 A
9	Headlight washer system	25 A
10	Emergency unlocking of central locking system	20 A
11	-
12	-
13	Front fog lights	15 A
14	Windscreen wiper	30 A
15	Windscreen wiper	30 A
16	Control module electronics, Open&Start system, ABS, brake light switch, TwinTop	5 A
17	Diesel fuel filter heating	25 A
18	Starter	25 A
19	Transmission electronics	30 A
20	Air conditioning system	10 A
21	Engine electronics	20 A
22	Engine electronics	7.5 A
23	Adaptive forward lighting, headlight range adjustment	10 A
24	Fuel pump	15 A
25	Transmission electronics	15 A
26	Engine electronics	10 A
27	Power steering (EHPS)	5 A
28	Transmission electronics	5 A
29	Transmission electronics	7.5 A
30	Engine electronics	10 A
31	Adaptive forward fighting, headlight range adjustment	10 A
32	Brake system, air conditioning system, clutch switch	5 A
33	Adaptive forward lighting, headlight range adjustment, light switch	5 A
34	Control unit, steering column module	7.5 A
35	Infotainment system	20 A
36	Mobile telephone, Infotainment system, display	7.5 A

---
