sigurante Zafira A (1999 - 2005)

Vauxhall Zafira A (1999 - 2005) fuses

🇷🇴 Opel Zafira A


🇷🇴
Contents
  1. General guidelines
  2. Fuses in the vehicle driver (passenger for RHD) side compartment
  3. Driver (or passanger for RHD) side relay fuse box
  4. Engine compartment fuse + relay boxes
General guidelines
  • Data on the replacement fuse must match the data on the defective fuse.
  • Do not replace a blown fuse before fixing the underlying issue.
  • Before replacing a fuse, turn off the respective switch and the ignition.
  • A blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
  • Some functions are protected by several fuses.
  • Fuses may also be inserted without existence of a function.

Types of automotive fuses

By voltage: 12v and 24v.
By amperage:
  •  grey - 2 A
  •  violet - 3 A
  •  tan/amber - 5 A
  •  brown - 7,5 A
  •  red - 10 A și 50 A
  •  blue - 15 A
  •  yellow - 20 A
  •  white or transparent - 25 A
  •  green - 30 A
  •  blue-green - 35 A
  •  orange - 40 A
  •  red - 50 A
  •  albastru - 60 A
  •  brown - 70 A
  •  white or transparent - 80 A
  •  violet - 100 A

Read more in the Automotive fuse wikipedia article.

Fuses in the vehicle driver (passenger for RHD) side compartment

  • The fusebox is located in the vehicle driver (or passanger for RHD) side compartment next to the steering column under a cover.
  • Detach the cover.
  • To replace a fuse, grip handle to disengage fusebox from underneath and swivel forwards.
locatie sigurante Zafira A
deschidere bord sigurante Zafira A
cleste plastic sigurante Zafira A
panou sigurante Zafira A
tablou sigurante Zafira A

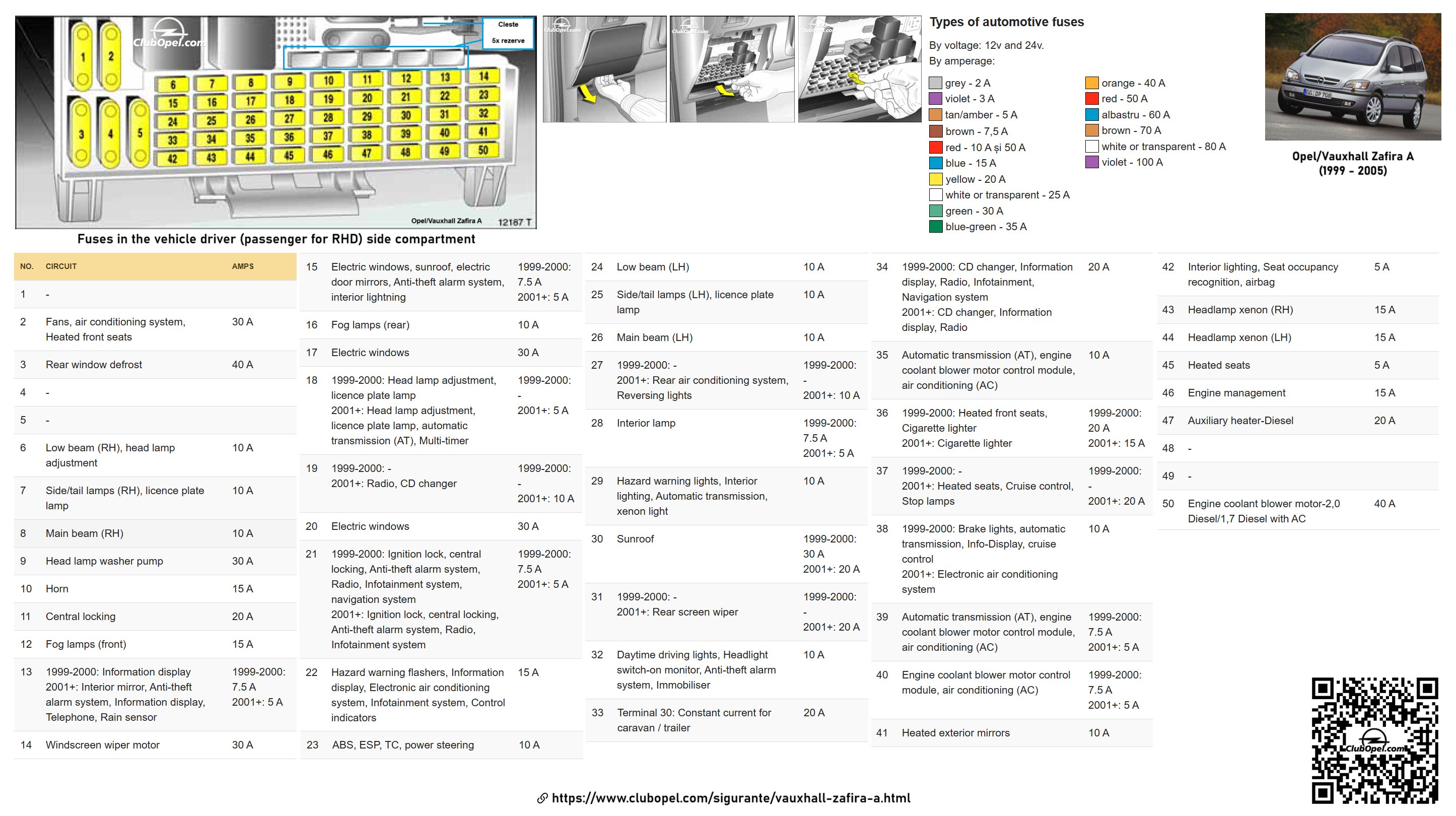

tablou sigurante Zafira A cu diagrama si tabel full
No. Circuit Amps
1 -
2 Fans, air conditioning system, Heated front seats 30 A
3 Rear window defrost 40 A
4 -
5 -
6 Low beam (RH), head lamp adjustment 10 A
7 Side/tail lamps (RH), licence plate lamp 10 A
8 Main beam (RH) 10 A
9 Head lamp washer pump 30 A
10 Horn 15 A
11 Central locking 20 A
12 Fog lamps (front) 15 A
13 1999-2000: Information display
2001+: Interior mirror, Anti-theft alarm system, Information display, Telephone, Rain sensor 		1999-2000: 7.5 A
2001+: 5 A
14 Windscreen wiper motor 30 A
15 Electric windows, sunroof, electric door mirrors, Anti-theft alarm system, interior lightning 1999-2000: 7.5 A
2001+: 5 A
16 Fog lamps (rear) 10 A
17 Electric windows 30 A
18 1999-2000: Head lamp adjustment, licence plate lamp
2001+: Head lamp adjustment, licence plate lamp, automatic transmission (AT), Multi-timer 		1999-2000: -
2001+: 5 A
19 1999-2000: -
2001+: Radio, CD changer 		1999-2000: -
2001+: 10 A
20 Electric windows 30 A
21 1999-2000: Ignition lock, central locking, Anti-theft alarm system, Radio, Infotainment system, navigation system
2001+: Ignition lock, central locking, Anti-theft alarm system, Radio, Infotainment system 		1999-2000: 7.5 A
2001+: 5 A
22 Hazard warning flashers, Information display, Electronic air conditioning system, Infotainment system, Control indicators 15 A
23 ABS, ESP, TC, power steering 10 A
24 Low beam (LH) 10 A
25 Side/tail lamps (LH), licence plate lamp 10 A
26 Main beam (LH) 10 A
27 1999-2000: -
2001+: Rear air conditioning system, Reversing lights 		1999-2000: -
2001+: 10 A
28 Interior lamp 1999-2000: 7.5 A
2001+: 5 A
29 Hazard warning lights, Interior lighting, Automatic transmission, xenon light 10 A
30 Sunroof 1999-2000: 30 A
2001+: 20 A
31 1999-2000: -
2001+: Rear screen wiper 		1999-2000: -
2001+: 20 A
32 Daytime driving lights, Headlight switch-on monitor, Anti-theft alarm system, Immobiliser 10 A
33 Terminal 30: Constant current for caravan / trailer 20 A
34 1999-2000: CD changer, Information display, Radio, Infotainment, Navigation system
2001+: CD changer, Information display, Radio 		20 A
35 Automatic transmission (AT), engine coolant blower motor control module, air conditioning (AC) 10 A
36 1999-2000: Heated front seats, Cigarette lighter
2001+: Cigarette lighter 		1999-2000: 20
2001+: 15 A
37 1999-2000: -
2001+: Heated seats, Cruise control, Stop lamps 		1999-2000: -
2001+: 20 A
38 1999-2000: Brake lights, automatic transmission, Info-Display, cruise control
2001+: Electronic air conditioning system 		10 A
39 Automatic transmission (AT), engine coolant blower motor control module, air conditioning (AC) 1999-2000: 7.5 A
2001+: 5 A
40 Engine coolant blower motor control module, air conditioning (AC) 1999-2000: 7.5 A
2001+: 5 A
41 Heated exterior mirrors 10 A
42 Interior lighting, Seat occupancy recognition, airbag 5 A
43 Headlamp xenon (RH) 15 A
44 Headlamp xenon (LH) 15 A
45 Heated seats 5 A
46 Engine management 15 A
47 Auxiliary heater-Diesel 20 A
48 -
49 -
50 Engine coolant blower motor-2,0 Diesel/1,7 Diesel with AC 40 A

Publicitate


Driver (or passanger for RHD) side relay fuse box

Schema relee Astra G/Zafira A compartiment bord
Relay diagram for Vauxhall Astra G/Zafira A
No. Circuit Amps
0 empty
R1 Horn relay
R2 Headlamp high beam relay
R3 Rear screen wiper relay
R4 Door mirror heater relay
R5 Fog lamps relay (front)
R6 Fog lamps relay (rear)
R7 Indicator relay (RH)
R8 Indicator relay (LH)
R9 Telephone audiosignal transmitter
R10 Signal converter module - Vehicle speed
R11 empty or n/a
R12 Windscreen wiper motor relay
R13 Heated rear window relay

Publicitate


Engine compartment fuse + relay boxes

locatie cutie stanga sigurante motor Astra G/Zafira A
locatie cutie dreapta sigurante motor Astra G/Zafira A
diagrama relee sigurante motor Astra G/Zafira A
diagrama relee sigurante motor Astra G/Zafira A full cu tabel
relee motor Astra G/Zafira A
relee motor Astra G/Zafira A
No. Circuit Amps
1 Ignition switch (empty on some models) 60 A
2 Lights switch/Lights fuse plate 60 A
3 Fuse plate: 3, 9, 17, 19, 20, 28, 30, 33, 34, 41 60 A
4 Engine coolant blower motors 30 A (40 A for vehicles with air conditioning (AC)) 20-40 A
5 ESP (or ABS on some models) 60 A
6 Engine management 20 A
7 Power steering 80 A
8 Engine functions (or Engine coolant blower motors on some models) 40 A
R1 -
R2 1999-2000: X16SZR, X18XE, X20XEV: Engine coolant blower motor relay;
2001+: Engine coolant blower motor relay (except Z12XE);
Filter preheating (diesel)
R3 1999-2000: X14XE, X16XEL, Z16XE: Engine coolant blower motor relay;
X12XE: Injectors;
2001+: Fuel pump relay (except Z20LET/Z22SE)
R4 Fuel pump relay (petrol engines);
Y17DT: Engine control unit
R5 1998-2000: -
2001+: Engine coolant pump relay
R6 1999-2000: Engine management (diesel engines);
2001+: Engine coolant blower motor;
Y17DT: spill valve
R7 Headlamps washer pump
R8 -

Publicitate


The information in the above tables has been scraped automatically from the user's manual and/or other sources and thus we cannot guarantee their accuracy.
You can contact us for any corrections and suggestions.
