General guidelines
By amperage:
Read more in the Automotive fuse wikipedia article.
- Data on the replacement fuse must match the data on the defective fuse.
- Do not replace a blown fuse before fixing the underlying issue.
- Before replacing a fuse, turn off the respective switch and the ignition.
- A blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
- Some functions are protected by several fuses.
- Fuses may also be inserted without existence of a function.
Types of automotive fuses
By voltage: 12v and 24v.By amperage:
- grey - 2 A
- violet - 3 A
- tan/amber - 5 A
- brown - 7,5 A
- red - 10 A și 50 A
- blue - 15 A
- yellow - 20 A
- white or transparent - 25 A
- green - 30 A
- blue-green - 35 A
- orange - 40 A
- red - 50 A
- albastru - 60 A
- brown - 70 A
- white or transparent - 80 A
- violet - 100 A
Read more in the Automotive fuse wikipedia article.

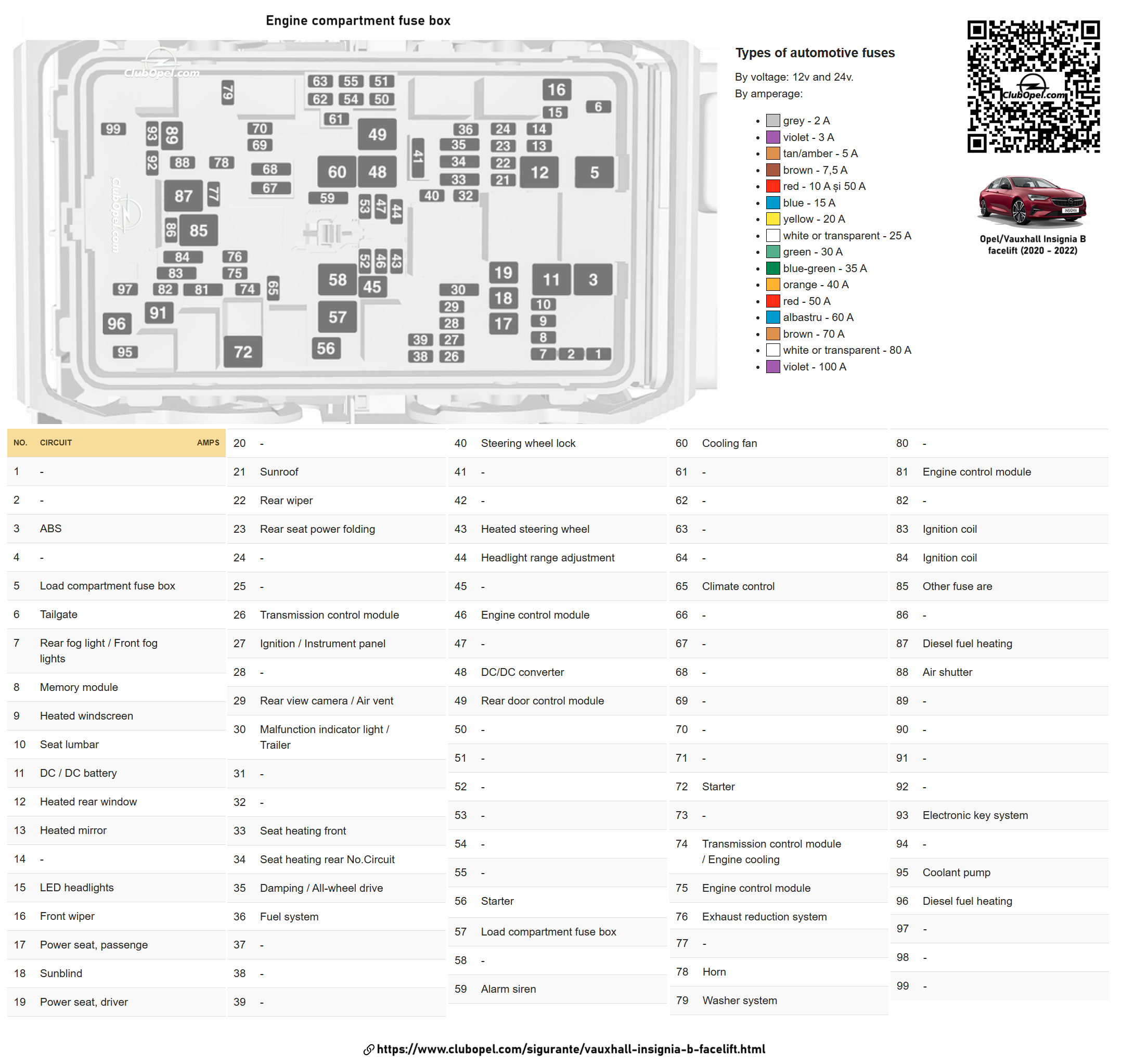

Engine compartment fuse box
- The fuse box is in the front left of the engine compartment. Disengage the cover and remove it.
| No. | Circuit | Amps |
|---|---|---|
| 1 | - | |
| 2 | - | |
| 3 | ABS | |
| 4 | - | |
| 5 | Load compartment fuse box | |
| 6 | Tailgate | |
| 7 | Rear fog light / Front fog lights | |
| 8 | Memory module | |
| 9 | Heated windscreen | |
| 10 | Seat lumbar | |
| 11 | DC / DC battery | |
| 12 | Heated rear window | |
| 13 | Heated mirror | |
| 14 | - | |
| 15 | LED headlights | |
| 16 | Front wiper | |
| 17 | Power seat, passenge | |
| 18 | Sunblind | |
| 19 | Power seat, driver | |
| 20 | - | |
| 21 | Sunroof | |
| 22 | Rear wiper | |
| 23 | Rear seat power folding | |
| 24 | - | |
| 25 | - | |
| 26 | Transmission control module | |
| 27 | Ignition / Instrument panel | |
| 28 | - | |
| 29 | Rear view camera / Air vent | |
| 30 | Malfunction indicator light / Trailer | |
| 31 | - | |
| 32 | - | |
| 33 | Seat heating front | |
| 34 | Seat heating rear No.Circuit | |
| 35 | Damping / All-wheel drive | |
| 36 | Fuel system | |
| 37 | - | |
| 38 | - | |
| 39 | - | |
| 40 | Steering wheel lock | |
| 41 | - | |
| 42 | - | |
| 43 | Heated steering wheel | |
| 44 | Headlight range adjustment | |
| 45 | - | |
| 46 | Engine control module | |
| 47 | - | |
| 48 | DC/DC converter | |
| 49 | Rear door control module | |
| 50 | - | |
| 51 | - | |
| 52 | - | |
| 53 | - | |
| 54 | - | |
| 55 | - | |
| 56 | Starter | |
| 57 | Load compartment fuse box | |
| 58 | - | |
| 59 | Alarm siren | |
| 60 | Cooling fan | |
| 61 | - | |
| 62 | - | |
| 63 | - | |
| 64 | - | |
| 65 | Climate control | |
| 66 | - | |
| 67 | - | |
| 68 | - | |
| 69 | - | |
| 70 | - | |
| 71 | - | |
| 72 | Starter | |
| 73 | - | |
| 74 | Transmission control module / Engine cooling | |
| 75 | Engine control module | |
| 76 | Exhaust reduction system | |
| 77 | - | |
| 78 | Horn | |
| 79 | Washer system | |
| 80 | - | |
| 81 | Engine control module | |
| 82 | - | |
| 83 | Ignition coil | |
| 84 | Ignition coil | |
| 85 | Other fuse are | |
| 86 | - | |
| 87 | Diesel fuel heating | |
| 88 | Air shutter | |
| 89 | - | |
| 90 | - | |
| 91 | - | |
| 92 | - | |
| 93 | Electronic key system | |
| 94 | - | |
| 95 | Coolant pump | |
| 96 | Diesel fuel heating | |
| 97 | - | |
| 98 | - | |
| 99 | - |
Publicitate

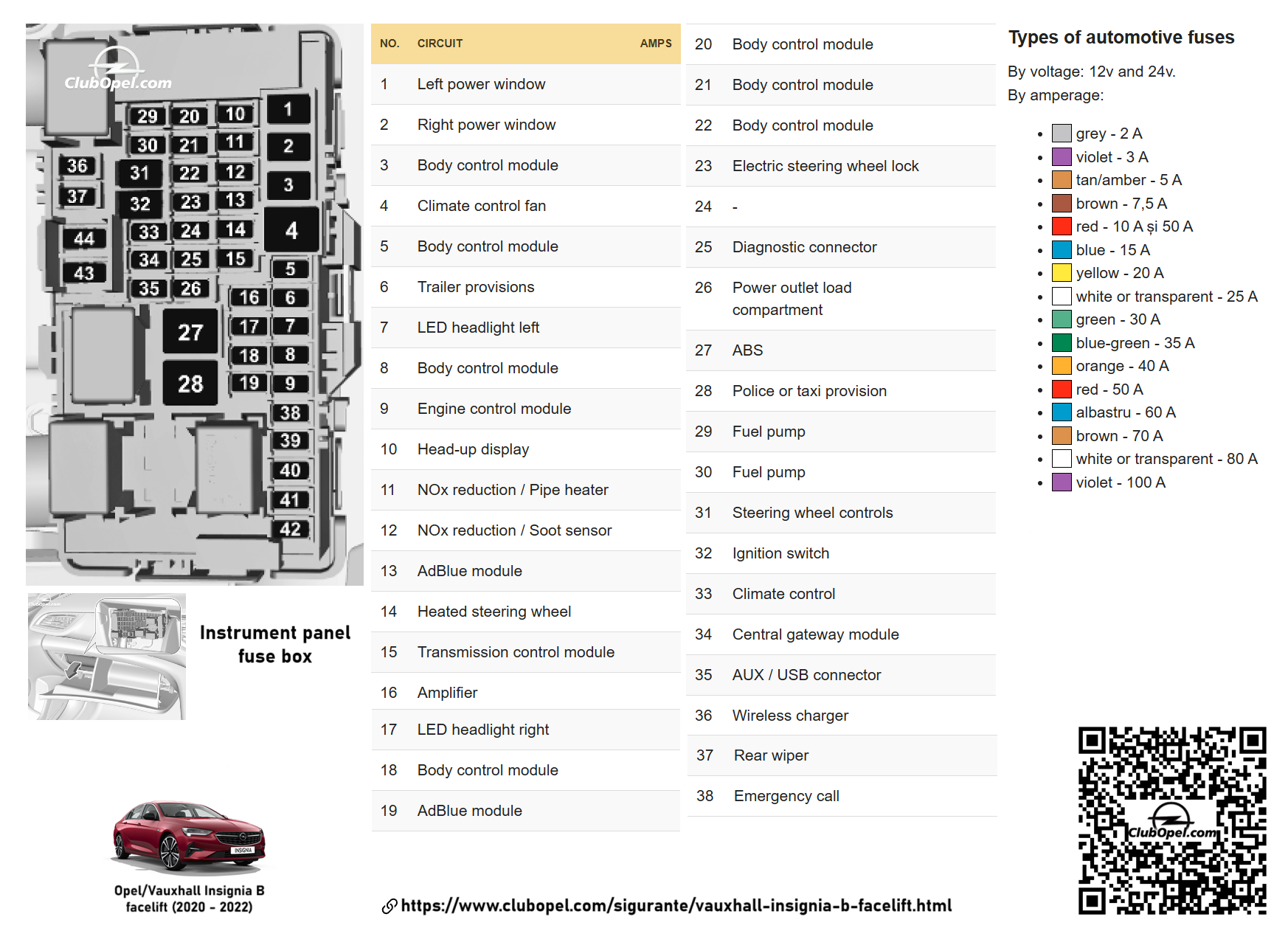

Instrument panel fuse box
| No. | Circuit | Amps |
|---|---|---|
| 1 | Left power window | |
| 2 | Right power window | |
| 3 | Body control module | |
| 4 | Climate control fan | |
| 5 | Body control module | |
| 6 | Trailer provisions | |
| 7 | LED headlight left | |
| 8 | Body control module | |
| 9 | Engine control module | |
| 10 | Head-up display | |
| 11 | NOx reduction / Pipe heater | |
| 12 | NOx reduction / Soot sensor | |
| 13 | AdBlue module | |
| 14 | Heated steering wheel | |
| 15 | Transmission control module | |
| 16 | Amplifier | |
| 17 | LED headlight right | |
| 18 | Body control module | |
| 19 | AdBlue module | |
| 20 | Body control module | |
| 21 | Body control module | |
| 22 | Body control module | |
| 23 | Electric steering wheel lock | |
| 24 | - | |
| 25 | Diagnostic connector | |
| 26 | Power outlet load compartment | |
| 27 | ABS | |
| 28 | Police or taxi provision | |
| 29 | Fuel pump | |
| 30 | Fuel pump | |
| 31 | Steering wheel controls | |
| 32 | Ignition switch | |
| 33 | Climate control | |
| 34 | Central gateway module | |
| 35 | AUX / USB connector | |
| 36 | Wireless charger | |
| 37 | Rear wiper | |
| 38 | Emergency call | |
| 39 | Display | |
| 40 | Parking assist | |
| 41 | Overhead console | |
| 42 | Infotainment System | |
| 43 | Police car systems | |
| 44 | Power outlet |
Publicitate

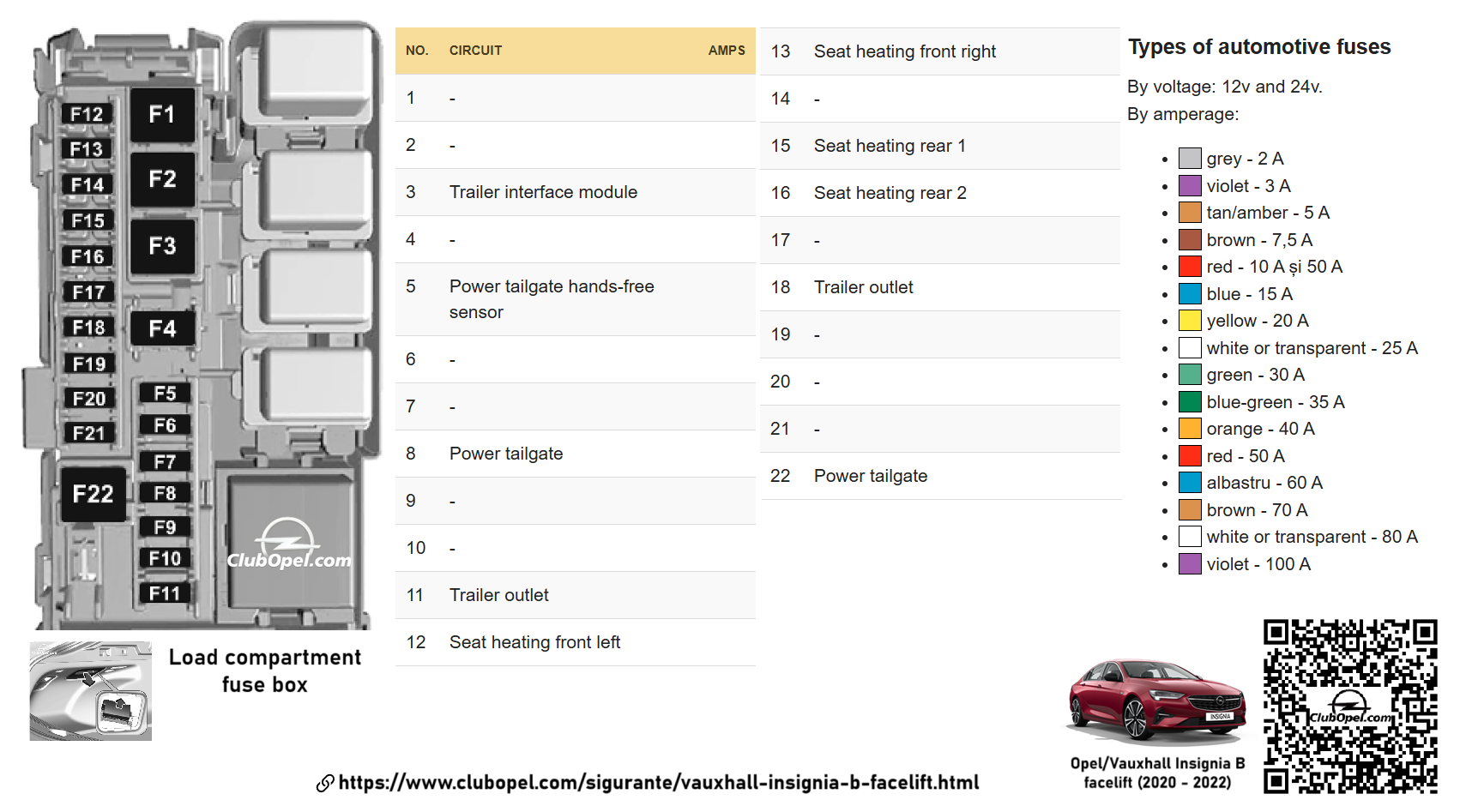

Load compartment fuse box
- The fuse box is located on the left side of the load compartment behind a cover. Remove the cover. Disengage the fuse box cover and remove it.
- Notice: Not all fuses or this fusebox may not be fitted.
| No. | Circuit | Amps |
|---|---|---|
| 1 | - | |
| 2 | - | |
| 3 | Trailer interface module | |
| 4 | - | |
| 5 | Power tailgate hands-free sensor | |
| 6 | - | |
| 7 | - | |
| 8 | Power tailgate | |
| 9 | - | |
| 10 | - | |
| 11 | Trailer outlet | |
| 12 | Seat heating front left | |
| 13 | Seat heating front right | |
| 14 | - | |
| 15 | Seat heating rear 1 | |
| 16 | Seat heating rear 2 | |
| 17 | - | |
| 18 | Trailer outlet | |
| 19 | - | |
| 20 | - | |
| 21 | - | |
| 22 | Power tailgate |
Publicitate
The information in the above tables has been scraped automatically from the user's manual and/or other sources and thus we cannot guarantee their accuracy.
You can contact us for any corrections and suggestions.
|
|
|
