sigurante Insignia A (2008 - 2013)

Vauxhall Insignia A (2008 - 2013) fuses

🇷🇴 Opel Insignia A

Sigurante Corsa F (2019 - 2024) Sigurante Insignia A facelift (2013 - 2017)

🇷🇴
Contents
  1. General guidelines
  2. Engine compartment fuse box
  3. Instrument panel fuse box
  4. Load compartment fuse box
General guidelines
  • Data on the replacement fuse must match the data on the defective fuse.
  • Do not replace a blown fuse before fixing the underlying issue.
  • Before replacing a fuse, turn off the respective switch and the ignition.
  • A blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
  • Some functions are protected by several fuses.
  • Fuses may also be inserted without existence of a function.

Types of automotive fuses

By voltage: 12v and 24v.
By amperage:
  •  grey - 2 A
  •  violet - 3 A
  •  tan/amber - 5 A
  •  brown - 7,5 A
  •  red - 10 A și 50 A
  •  blue - 15 A
  •  yellow - 20 A
  •  white or transparent - 25 A
  •  green - 30 A
  •  blue-green - 35 A
  •  orange - 40 A
  •  red - 50 A
  •  albastru - 60 A
  •  brown - 70 A
  •  white or transparent - 80 A
  •  violet - 100 A

Read more in the Automotive fuse wikipedia article.

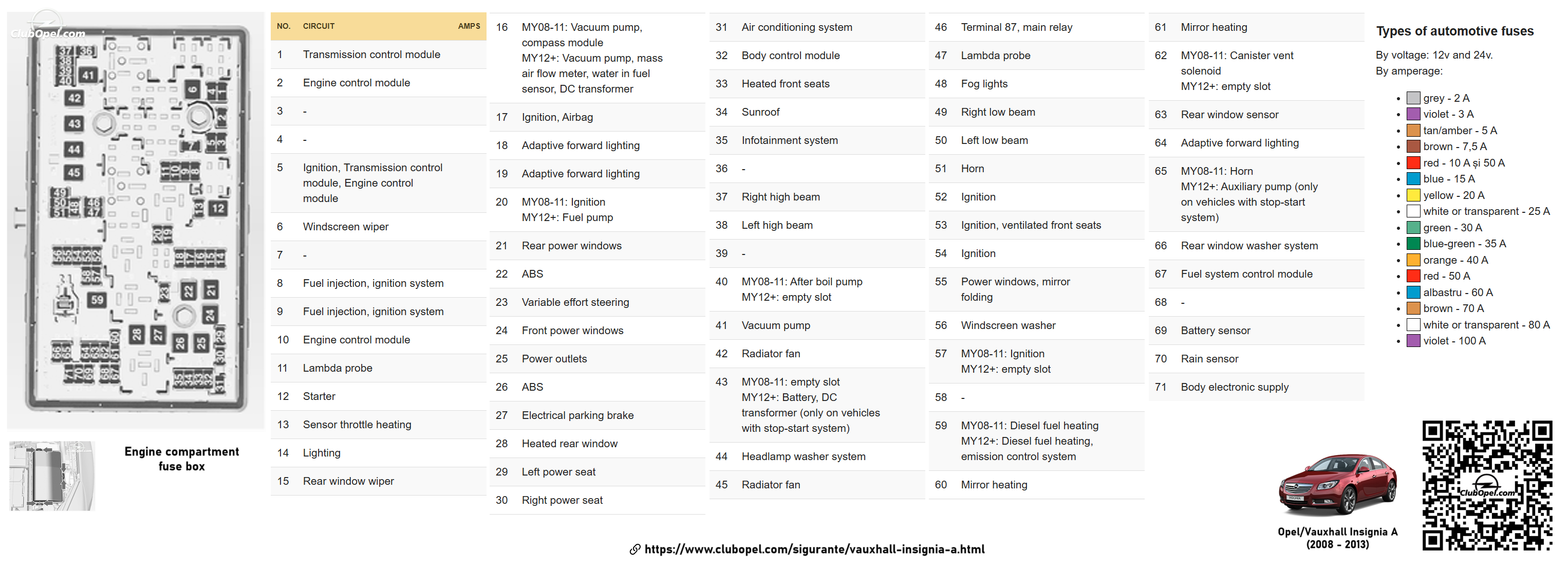

Engine compartment fuse box

  • The fuse box is at the front left of the engine compartment. Disengage the cover, lift it upwards and remove.
locatie sigurante motor Insignia A
tablou sigurante motor Insignia A
tablou sigurante motor Insignia A cu diagrama si tabel
No. Circuit Amps
1 Transmission control module
2 Engine control module
3 -
4 -
5 Ignition, Transmission control module, Engine control module
6 Windscreen wiper
7 -
8 Fuel injection, ignition system
9 Fuel injection, ignition system
10 Engine control module
11 Lambda probe
12 Starter
13 Sensor throttle heating
14 Lighting
15 Rear window wiper
16 MY08-11: Vacuum pump, compass module
MY12+: Vacuum pump, mass air flow meter, water in fuel sensor, DC transformer
17 Ignition, Airbag
18 Adaptive forward lighting
19 Adaptive forward lighting
20 MY08-11: Ignition
MY12+: Fuel pump
21 Rear power windows
22 ABS
23 Variable effort steering
24 Front power windows
25 Power outlets
26 ABS
27 Electrical parking brake
28 Heated rear window
29 Left power seat
30 Right power seat
31 Air conditioning system
32 Body control module
33 Heated front seats
34 Sunroof
35 Infotainment system
36 -
37 Right high beam
38 Left high beam
39 -
40 MY08-11: After boil pump
MY12+: empty slot
41 Vacuum pump
42 Radiator fan
43 MY08-11: empty slot
MY12+: Battery, DC transformer (only on vehicles with stop-start system)
44 Headlamp washer system
45 Radiator fan
46 Terminal 87, main relay
47 Lambda probe
48 Fog lights
49 Right low beam
50 Left low beam
51 Horn
52 Ignition
53 Ignition, ventilated front seats
54 Ignition
55 Power windows, mirror folding
56 Windscreen washer
57 MY08-11: Ignition
MY12+: empty slot
58 -
59 MY08-11: Diesel fuel heating
MY12+: Diesel fuel heating, emission control system
60 Mirror heating
61 Mirror heating
62 MY08-11: Canister vent solenoid
MY12+: empty slot
63 Rear window sensor
64 Adaptive forward lighting
65 MY08-11: Horn
MY12+: Auxiliary pump (only on vehicles with stop-start system)
66 Rear window washer system
67 Fuel system control module
68 -
69 Battery sensor
70 Rain sensor
71 Body electronic supply

Publicitate

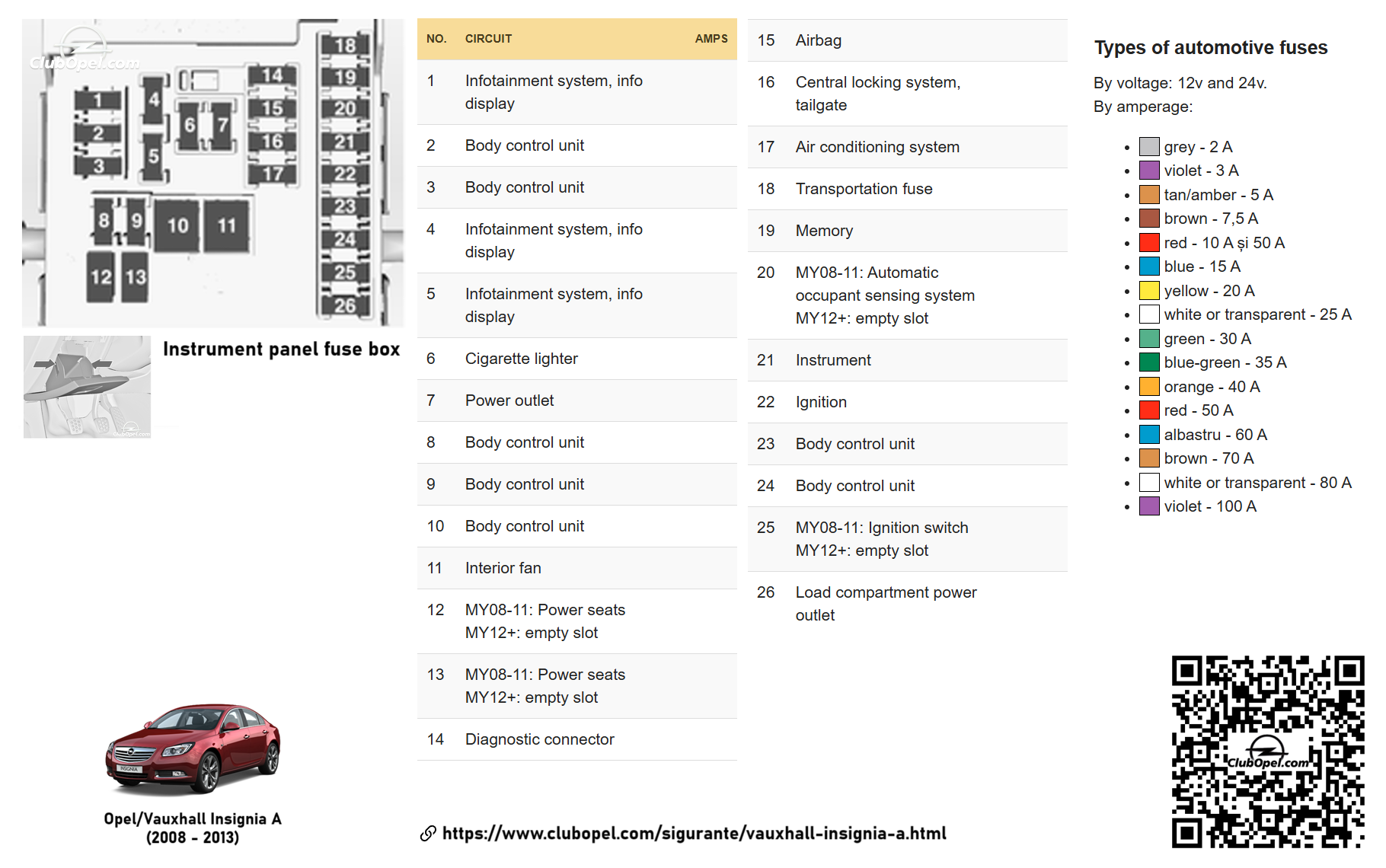

Instrument panel fuse box

  • The fuse box is behind the storage compartment in the instrument panel.
  • Power seats, No's. 12 and 13, have an overload protection. The circuit will be closed again after cooling down.
  • In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover
locatie sigurante bord partea soferului Insignia A
tablou sigurante bord Insignia A
tablou sigurante bord Insignia A cu diagrama si tabel
No. Circuit Amps
1 Infotainment system, info display
2 Body control unit
3 Body control unit
4 Infotainment system, info display
5 Infotainment system, info display
6 Cigarette lighter
7 Power outlet
8 Body control unit
9 Body control unit
10 Body control unit
11 Interior fan
12 MY08-11: Power seats
MY12+: empty slot
13 MY08-11: Power seats
MY12+: empty slot
14 Diagnostic connector
15 Airbag
16 Central locking system, tailgate
17 Air conditioning system
18 Transportation fuse
19 Memory
20 MY08-11: Automatic occupant sensing system
MY12+: empty slot
21 Instrument
22 Ignition
23 Body control unit
24 Body control unit
25 MY08-11: Ignition switch
MY12+: empty slot
26 Load compartment power outlet

Publicitate

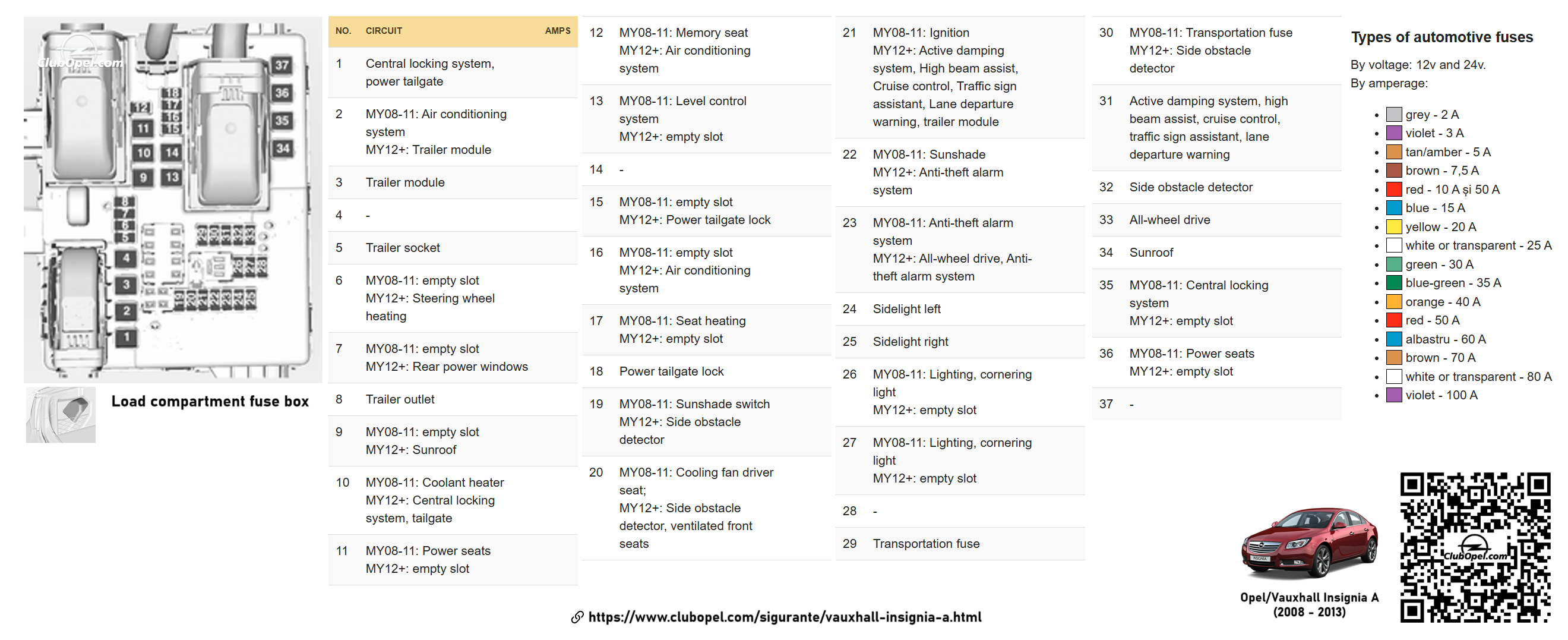

Load compartment fuse box

  • The fuse box is on the left side of the load compartment behind a cover. Remove the cover.
locatie sigurante portbagaj Insignia A
tablou sigurante portbagaj Insignia A
tablou sigurante portbagaj Insignia A cu diagrama si tabel
No. Circuit Amps
1 Central locking system, power tailgate
2 MY08-11: Air conditioning system
MY12+: Trailer module
3 Trailer module
4 -
5 Trailer socket
6 MY08-11: empty slot
MY12+: Steering wheel heating
7 MY08-11: empty slot
MY12+: Rear power windows
8 Trailer outlet
9 MY08-11: empty slot
MY12+: Sunroof
10 MY08-11: Coolant heater
MY12+: Central locking system, tailgate
11 MY08-11: Power seats
MY12+: empty slot
12 MY08-11: Memory seat
MY12+: Air conditioning system
13 MY08-11: Level control system
MY12+: empty slot
14 -
15 MY08-11: empty slot
MY12+: Power tailgate lock
16 MY08-11: empty slot
MY12+: Air conditioning system
17 MY08-11: Seat heating
MY12+: empty slot
18 Power tailgate lock
19 MY08-11: Sunshade switch
MY12+: Side obstacle detector
20 MY08-11: Cooling fan driver seat;
MY12+: Side obstacle detector, ventilated front seats
21 MY08-11: Ignition
MY12+: Active damping system, High beam assist, Cruise control, Traffic sign assistant, Lane departure warning, trailer module
22 MY08-11: Sunshade
MY12+: Anti-theft alarm system
23 MY08-11: Anti-theft alarm system
MY12+: All-wheel drive, Anti-theft alarm system
24 Sidelight left
25 Sidelight right
26 MY08-11: Lighting, cornering light
MY12+: empty slot
27 MY08-11: Lighting, cornering light
MY12+: empty slot
28 -
29 Transportation fuse
30 MY08-11: Transportation fuse
MY12+: Side obstacle detector
31 Active damping system, high beam assist, cruise control, traffic sign assistant, lane departure warning
32 Side obstacle detector
33 All-wheel drive
34 Sunroof
35 MY08-11: Central locking system
MY12+: empty slot
36 MY08-11: Power seats
MY12+: empty slot
37 -

Publicitate


The information in the above tables has been scraped automatically from the user's manual and/or other sources and thus we cannot guarantee their accuracy.
You can contact us for any corrections and suggestions.

Additional resources


Owners manual (EN, pdf) (p. 171)
