General guidelines
By amperage:
Read more in the Automotive fuse wikipedia article.
- Data on the replacement fuse must match the data on the defective fuse.
- Do not replace a blown fuse before fixing the underlying issue.
- Before replacing a fuse, turn off the respective switch and the ignition.
- A blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
- Some functions are protected by several fuses.
- Fuses may also be inserted without existence of a function.
Types of automotive fuses
By voltage: 12v and 24v.By amperage:
- grey - 2 A
- violet - 3 A
- tan/amber - 5 A
- brown - 7,5 A
- red - 10 A și 50 A
- blue - 15 A
- yellow - 20 A
- white or transparent - 25 A
- green - 30 A
- blue-green - 35 A
- orange - 40 A
- red - 50 A
- albastru - 60 A
- brown - 70 A
- white or transparent - 80 A
- violet - 100 A
Read more in the Automotive fuse wikipedia article.

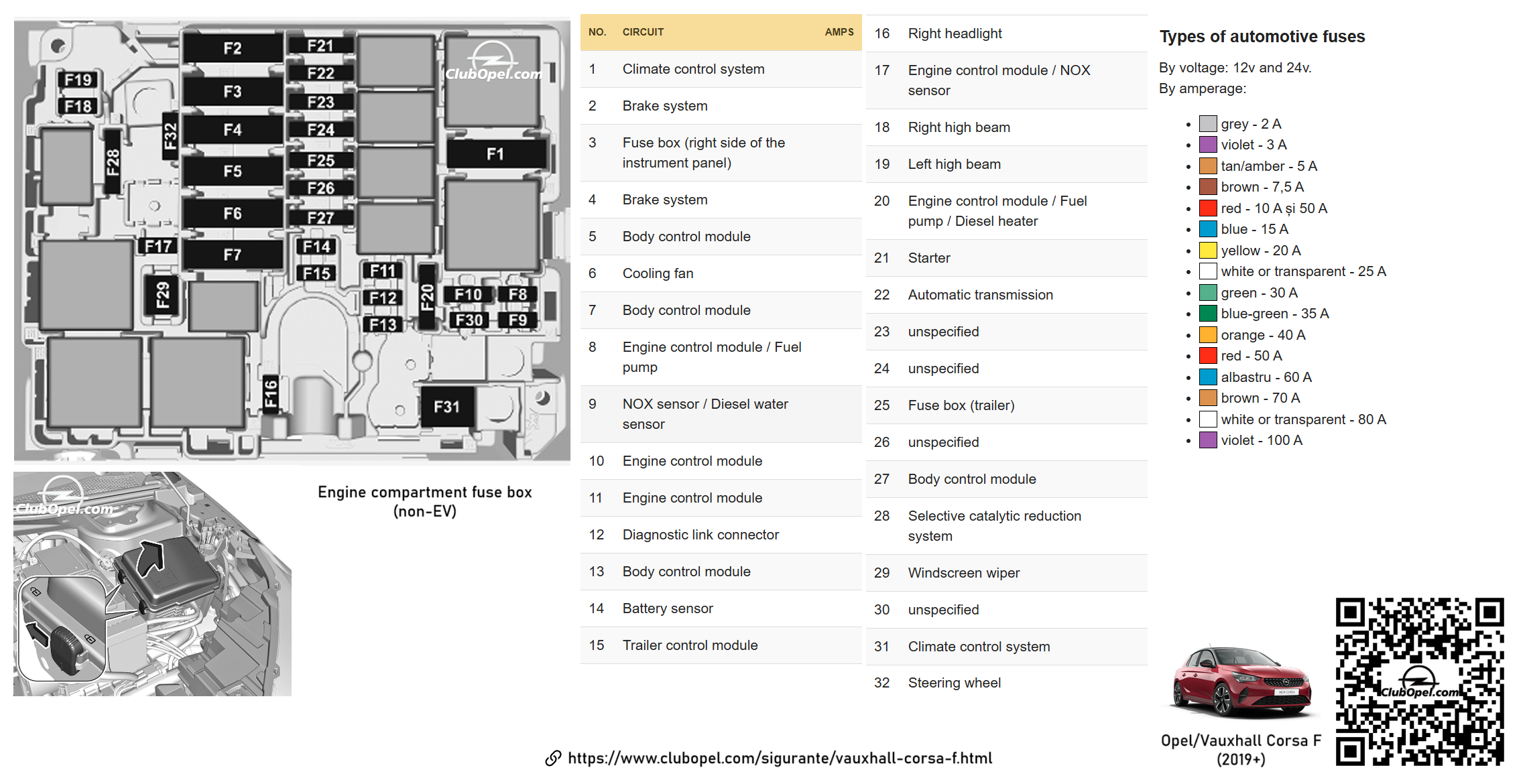

Engine compartment fuse box (non-EV)
| No. | Circuit | Amps |
|---|---|---|
| 1 | Climate control system | |
| 2 | Brake system | |
| 3 | Fuse box (right side of the instrument panel) | |
| 4 | Brake system | |
| 5 | Body control module | |
| 6 | Cooling fan | |
| 7 | Body control module | |
| 8 | Engine control module / Fuel pump | |
| 9 | NOX sensor / Diesel water sensor | |
| 10 | Engine control module | |
| 11 | Engine control module | |
| 12 | Diagnostic link connector | |
| 13 | Body control module | |
| 14 | Battery sensor | |
| 15 | Trailer control module | |
| 16 | Right headlight | |
| 17 | Engine control module / NOX sensor | |
| 18 | Right high beam | |
| 19 | Left high beam | |
| 20 | Engine control module / Fuel pump / Diesel heater | |
| 21 | Starter | |
| 22 | Automatic transmission | |
| 23 | unspecified | |
| 24 | unspecified | |
| 25 | Fuse box (trailer) | |
| 26 | unspecified | |
| 27 | Body control module | |
| 28 | Selective catalytic reduction system | |
| 29 | Windscreen wiper | |
| 30 | unspecified | |
| 31 | Climate control system | |
| 32 | Steering wheel |
Publicitate

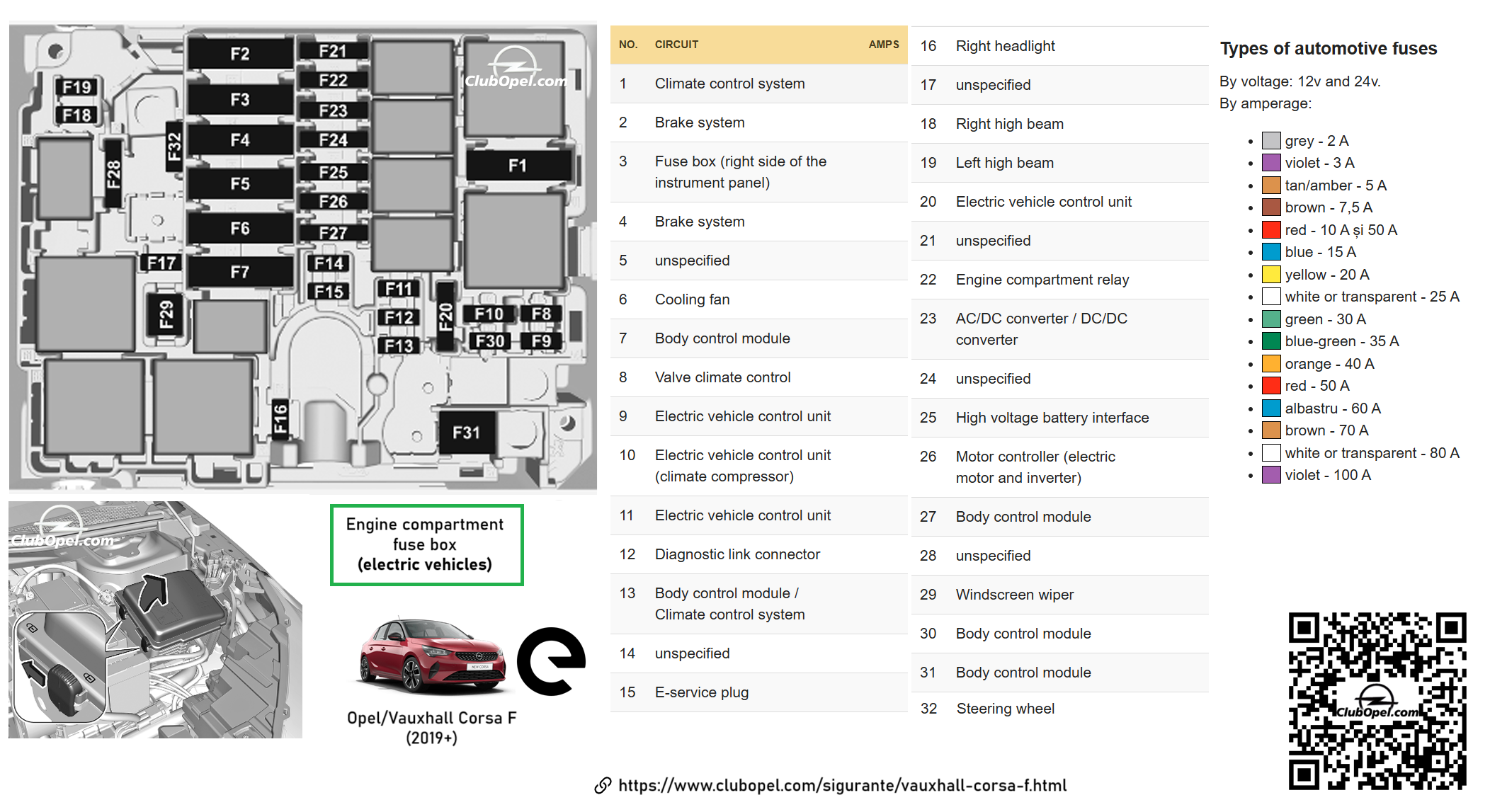

Engine compartment fuse box (electric vehicles)
| No. | Circuit | Amps |
|---|---|---|
| 1 | Climate control system | |
| 2 | Brake system | |
| 3 | Fuse box (right side of the instrument panel) | |
| 4 | Brake system | |
| 5 | unspecified | |
| 6 | Cooling fan | |
| 7 | Body control module | |
| 8 | Valve climate control | |
| 9 | Electric vehicle control unit | |
| 10 | Electric vehicle control unit (climate compressor) | |
| 11 | Electric vehicle control unit | |
| 12 | Diagnostic link connector | |
| 13 | Body control module / Climate control system | |
| 14 | unspecified | |
| 15 | E-service plug | |
| 16 | Right headlight | |
| 17 | unspecified | |
| 18 | Right high beam | |
| 19 | Left high beam | |
| 20 | Electric vehicle control unit | |
| 21 | unspecified | |
| 22 | Engine compartment relay | |
| 23 | AC/DC converter / DC/DC converter | |
| 24 | unspecified | |
| 25 | High voltage battery interface | |
| 26 | Motor controller (electric motor and inverter) | |
| 27 | Body control module | |
| 28 | unspecified | |
| 29 | Windscreen wiper | |
| 30 | Body control module | |
| 31 | Body control module | |
| 32 | Steering wheel |
Publicitate

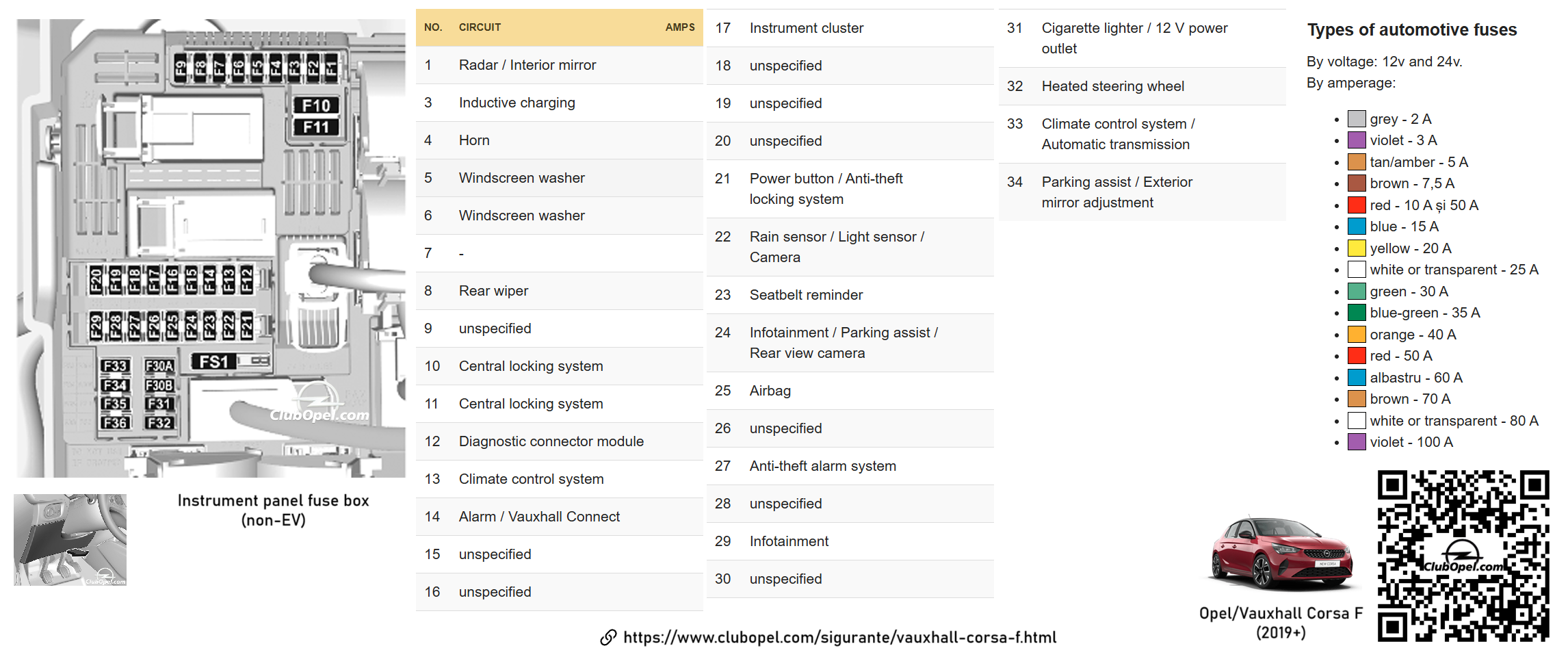

Instrument panel fuse box (non-EV)
- Fuse box on the left side of the instrument panel
- In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover.
| No. | Circuit | Amps |
|---|---|---|
| 1 | Radar / Interior mirror | |
| 3 | Inductive charging | |
| 4 | Horn | |
| 5 | Windscreen washer | |
| 6 | Windscreen washer | |
| 7 | - | |
| 8 | Rear wiper | |
| 9 | unspecified | |
| 10 | Central locking system | |
| 11 | Central locking system | |
| 12 | Diagnostic connector module | |
| 13 | Climate control system | |
| 14 | Alarm / Vauxhall Connect | |
| 15 | unspecified | |
| 16 | unspecified | |
| 17 | Instrument cluster | |
| 18 | unspecified | |
| 19 | unspecified | |
| 20 | unspecified | |
| 21 | Power button / Anti-theft locking system | |
| 22 | Rain sensor / Light sensor / Camera | |
| 23 | Seatbelt reminder | |
| 24 | Infotainment / Parking assist / Rear view camera | |
| 25 | Airbag | |
| 26 | unspecified | |
| 27 | Anti-theft alarm system | |
| 28 | unspecified | |
| 29 | Infotainment | |
| 30 | unspecified | |
| 31 | Cigarette lighter / 12 V power outlet | |
| 32 | Heated steering wheel | |
| 33 | Climate control system / Automatic transmission | |
| 34 | Parking assist / Exterior mirror adjustment |
Publicitate

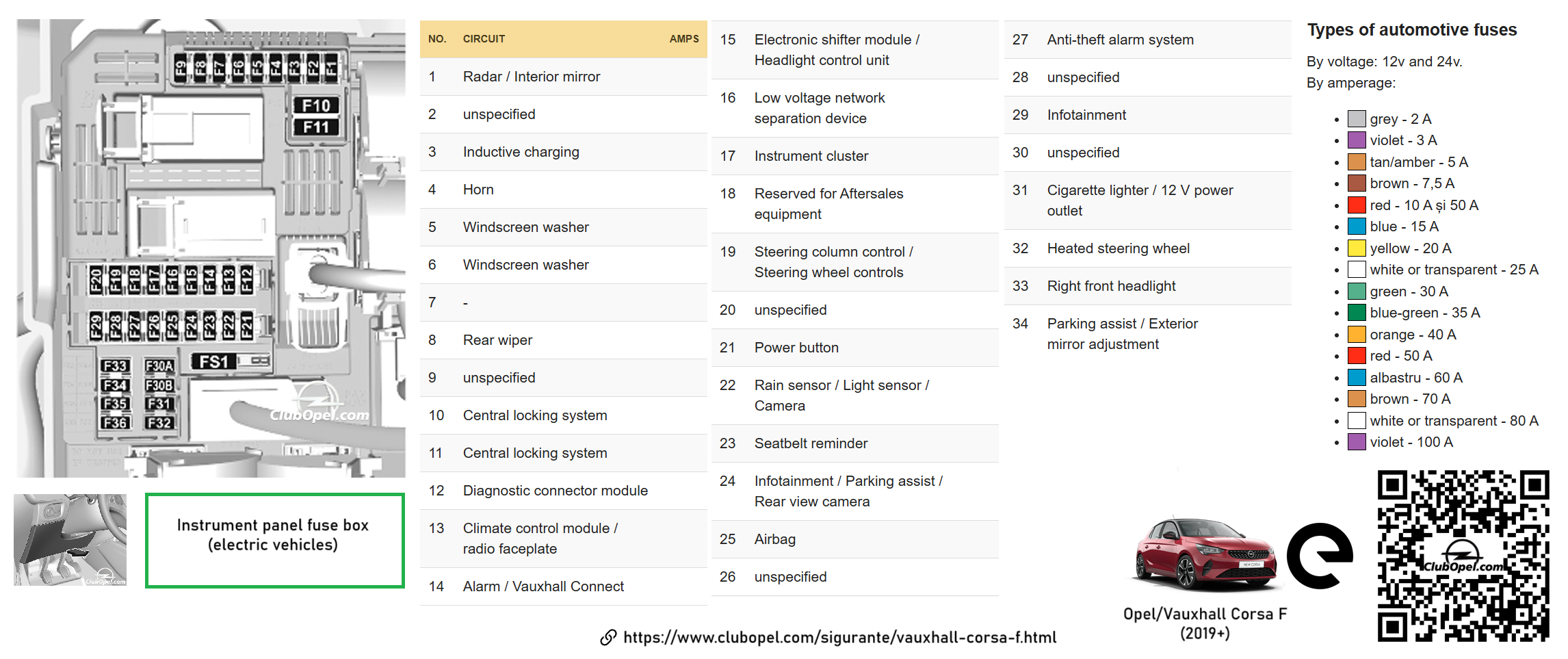

Instrument panel fuse box (electric vehicles)
- Fuse box on the left side of the instrument panel
- In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover.
| No. | Circuit | Amps |
|---|---|---|
| 1 | Radar / Interior mirror | |
| 2 | unspecified | |
| 3 | Inductive charging | |
| 4 | Horn | |
| 5 | Windscreen washer | |
| 6 | Windscreen washer | |
| 7 | - | |
| 8 | Rear wiper | |
| 9 | unspecified | |
| 10 | Central locking system | |
| 11 | Central locking system | |
| 12 | Diagnostic connector module | |
| 13 | Climate control module / radio faceplate | |
| 14 | Alarm / Vauxhall Connect | |
| 15 | Electronic shifter module / Headlight control unit | |
| 16 | Low voltage network separation device | |
| 17 | Instrument cluster | |
| 18 | Reserved for Aftersales equipment | |
| 19 | Steering column control / Steering wheel controls | |
| 20 | unspecified | |
| 21 | Power button | |
| 22 | Rain sensor / Light sensor / Camera | |
| 23 | Seatbelt reminder | |
| 24 | Infotainment / Parking assist / Rear view camera | |
| 25 | Airbag | |
| 26 | unspecified | |
| 27 | Anti-theft alarm system | |
| 28 | unspecified | |
| 29 | Infotainment | |
| 30 | unspecified | |
| 31 | Cigarette lighter / 12 V power outlet | |
| 32 | Heated steering wheel | |
| 33 | Right front headlight | |
| 34 | Parking assist / Exterior mirror adjustment |

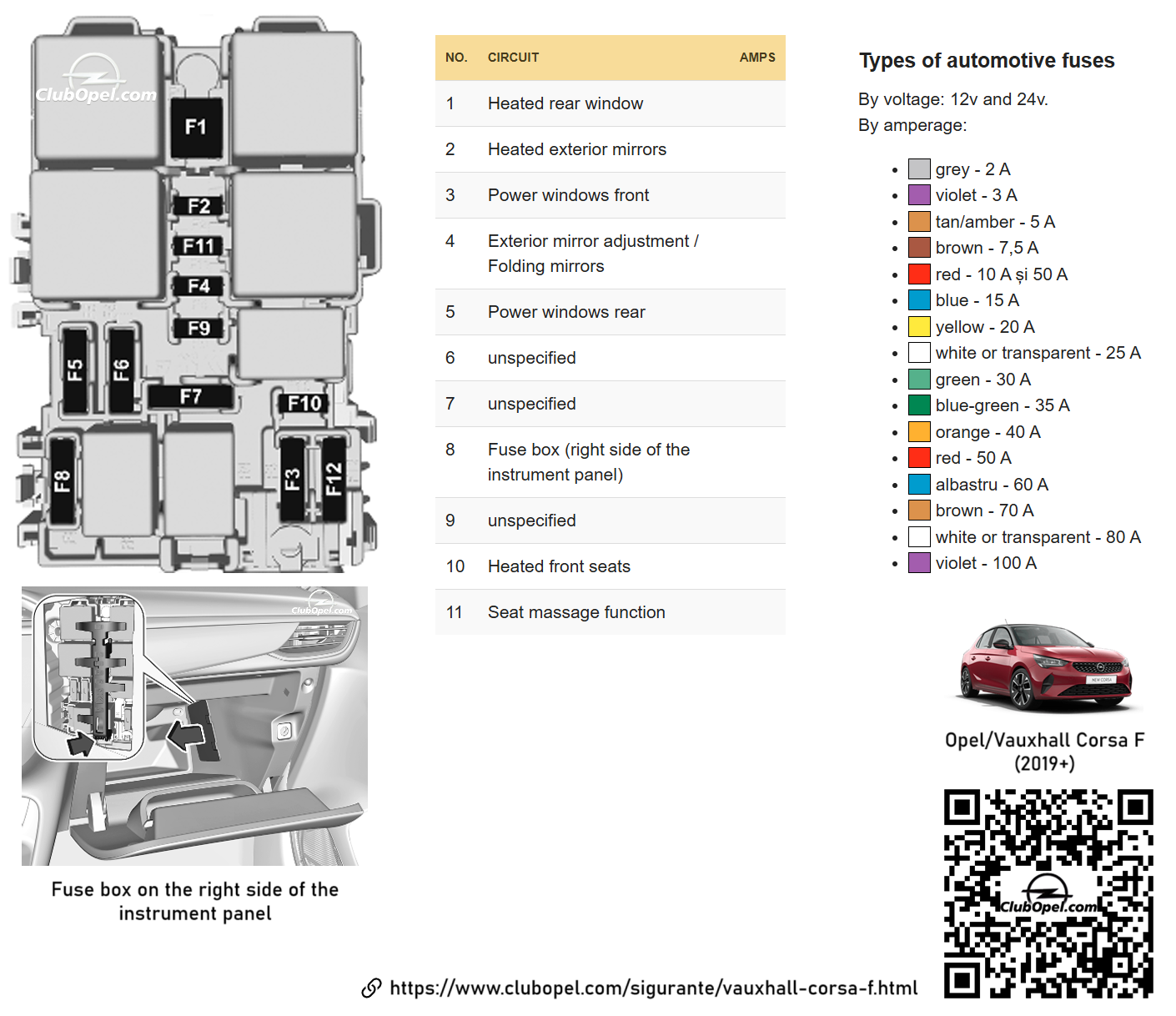

Fuse box on the right side of the instrument panel
- In right-hand drive vehicles, the fuse box is located behind a cover in the instrument panel. Disengage cover at the bottom side and remove. Remove the bracket.
| No. | Circuit | Amps |
|---|---|---|
| 1 | Heated rear window | |
| 2 | Heated exterior mirrors | |
| 3 | Power windows front | |
| 4 | Exterior mirror adjustment / Folding mirrors | |
| 5 | Power windows rear | |
| 6 | unspecified | |
| 7 | unspecified | |
| 8 | Fuse box (right side of the instrument panel) | |
| 9 | unspecified | |
| 10 | Heated front seats | |
| 11 | Seat massage function |
The information in the above tables has been scraped automatically from the user's manual and/or other sources and thus we cannot guarantee their accuracy.
You can contact us for any corrections and suggestions.
|
|
|
