General guidelines
By amperage:
Read more in the Automotive fuse wikipedia article.
- Data on the replacement fuse must match the data on the defective fuse.
- Do not replace a blown fuse before fixing the underlying issue.
- Before replacing a fuse, turn off the respective switch and the ignition.
- A blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
- Some functions are protected by several fuses.
- Fuses may also be inserted without existence of a function.
Types of automotive fuses
By voltage: 12v and 24v.By amperage:
- grey - 2 A
- violet - 3 A
- tan/amber - 5 A
- brown - 7,5 A
- red - 10 A și 50 A
- blue - 15 A
- yellow - 20 A
- white or transparent - 25 A
- green - 30 A
- blue-green - 35 A
- orange - 40 A
- red - 50 A
- albastru - 60 A
- brown - 70 A
- white or transparent - 80 A
- violet - 100 A
Read more in the Automotive fuse wikipedia article.

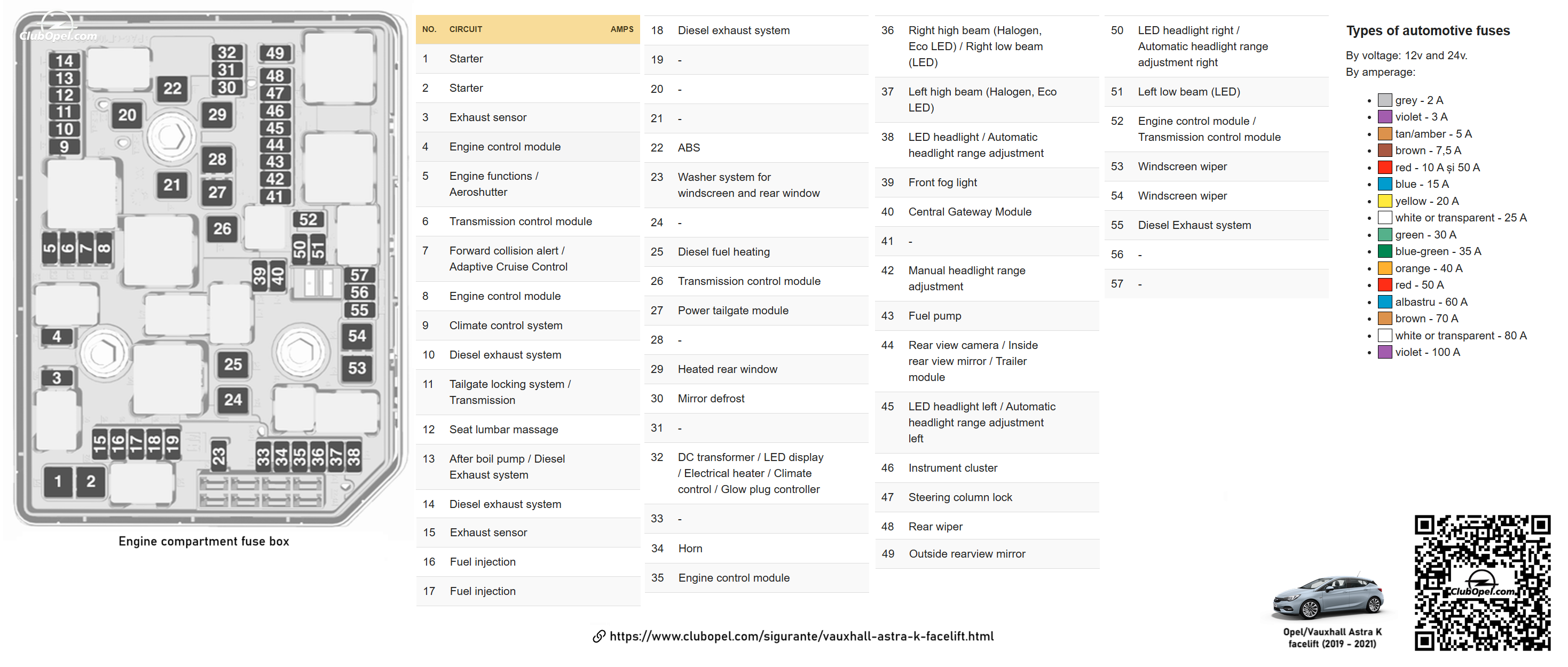

Engine compartment fuse box
- The fuse box is in the front left of the engine compartment. Disengage the cover and remove it.
- After having changed defective fuses, close the fuse box cover and press until it engages.
- If the fuse box cover is not closed correctly, malfunction may occur.
| No. | Circuit | Amps |
|---|---|---|
| 1 | Starter | |
| 2 | Starter | |
| 3 | Exhaust sensor | |
| 4 | Engine control module | |
| 5 | Engine functions / Aeroshutter | |
| 6 | Transmission control module | |
| 7 | Forward collision alert / Adaptive Cruise Control | |
| 8 | Engine control module | |
| 9 | Climate control system | |
| 10 | Diesel exhaust system | |
| 11 | Tailgate locking system / Transmission | |
| 12 | Seat lumbar massage | |
| 13 | After boil pump / Diesel Exhaust system | |
| 14 | Diesel exhaust system | |
| 15 | Exhaust sensor | |
| 16 | Fuel injection | |
| 17 | Fuel injection | |
| 18 | Diesel exhaust system | |
| 19 | - | |
| 20 | - | |
| 21 | - | |
| 22 | ABS | |
| 23 | Washer system for windscreen and rear window | |
| 24 | - | |
| 25 | Diesel fuel heating | |
| 26 | Transmission control module | |
| 27 | Power tailgate module | |
| 28 | - | |
| 29 | Heated rear window | |
| 30 | Mirror defrost | |
| 31 | - | |
| 32 | DC transformer / LED display / Electrical heater / Climate control / Glow plug controller | |
| 33 | - | |
| 34 | Horn | |
| 35 | Engine control module | |
| 36 | Right high beam (Halogen, Eco LED) / Right low beam (LED) | |
| 37 | Left high beam (Halogen, Eco LED) | |
| 38 | LED headlight / Automatic headlight range adjustment | |
| 39 | Front fog light | |
| 40 | Central Gateway Module | |
| 41 | - | |
| 42 | Manual headlight range adjustment | |
| 43 | Fuel pump | |
| 44 | Rear view camera / Inside rear view mirror / Trailer module | |
| 45 | LED headlight left / Automatic headlight range adjustment left | |
| 46 | Instrument cluster | |
| 47 | Steering column lock | |
| 48 | Rear wiper | |
| 49 | Outside rearview mirror | |
| 50 | LED headlight right / Automatic headlight range adjustment right | |
| 51 | Left low beam (LED) | |
| 52 | Engine control module / Transmission control module | |
| 53 | Windscreen wiper | |
| 54 | Windscreen wiper | |
| 55 | Diesel Exhaust system | |
| 56 | - | |
| 57 | - |
Publicitate

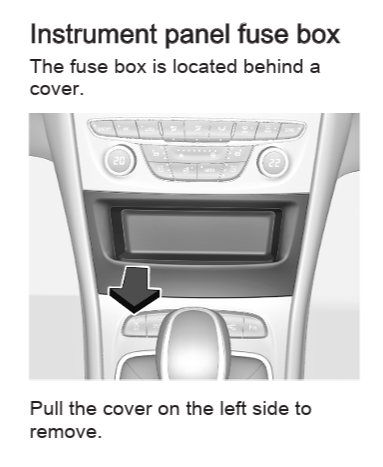

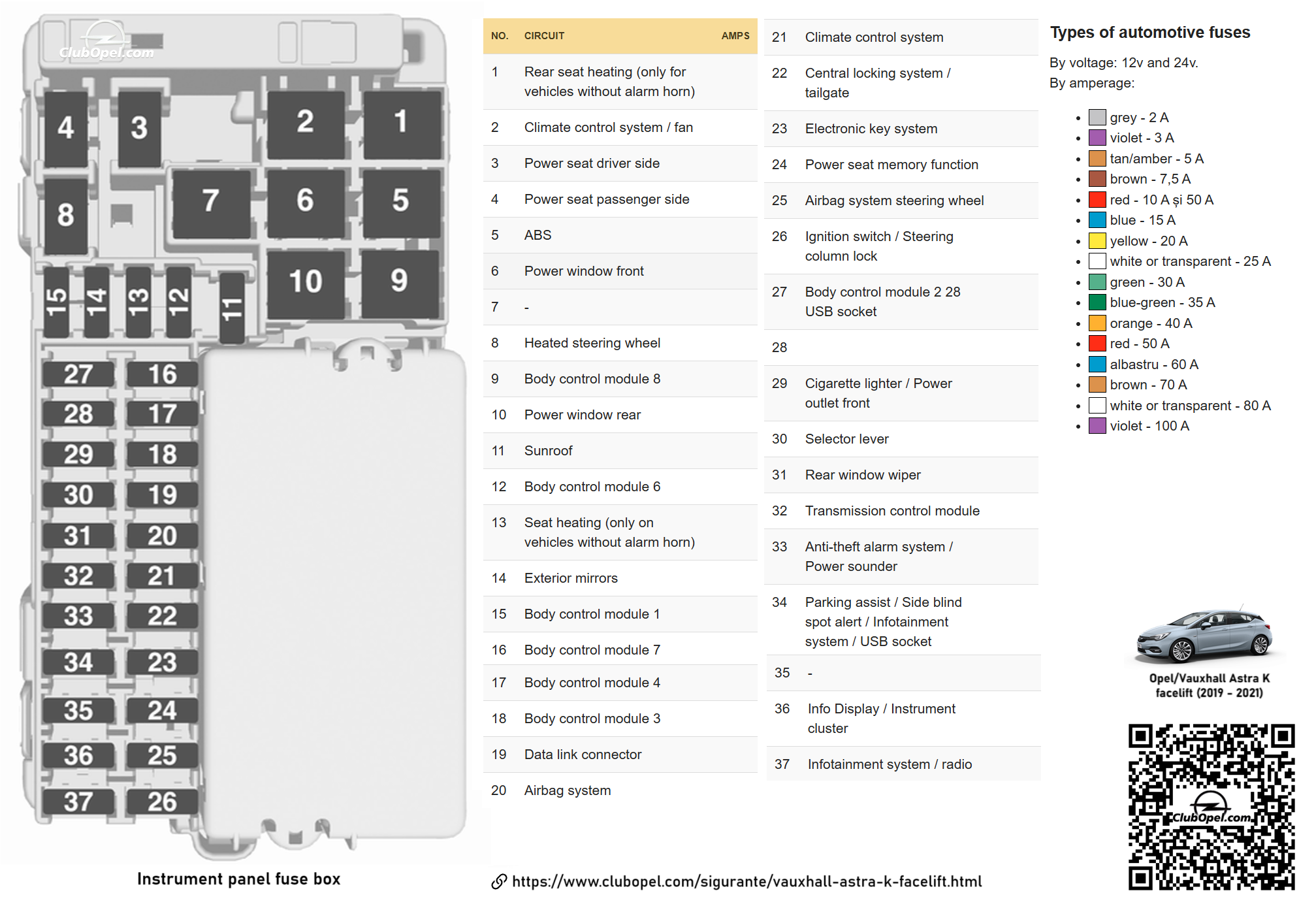

Instrument panel fuse box
- The fuse box is located behind a cover.
- Pull the cover on the left side to remove.

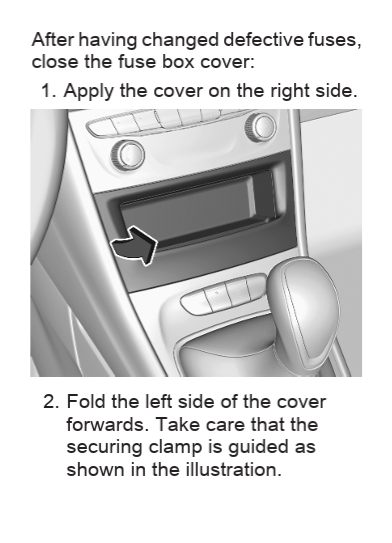

- After having changed defective fuses, close the fuse box cover:
1.Apply the cover on the right side.
2. Fold the left side of the cover forwards. Take care that the securing clamp is guided as shown in the illustration.
| No. | Circuit | Amps |
|---|---|---|
| 1 | Rear seat heating (only for vehicles without alarm horn) | |
| 2 | Climate control system / fan | |
| 3 | Power seat driver side | |
| 4 | Power seat passenger side | |
| 5 | ABS | |
| 6 | Power window front | |
| 7 | - | |
| 8 | Heated steering wheel | |
| 9 | Body control module 8 | |
| 10 | Power window rear | |
| 11 | Sunroof | |
| 12 | Body control module 6 | |
| 13 | Seat heating (only on vehicles without alarm horn) | |
| 14 | Exterior mirrors | |
| 15 | Body control module 1 | |
| 16 | Body control module 7 | |
| 17 | Body control module 4 | |
| 18 | Body control module 3 | |
| 19 | Data link connector | |
| 20 | Airbag system | |
| 21 | Climate control system | |
| 22 | Central locking system / tailgate | |
| 23 | Electronic key system | |
| 24 | Power seat memory function | |
| 25 | Airbag system steering wheel | |
| 26 | Ignition switch / Steering column lock | |
| 27 | Body control module 2 28 USB socket | |
| 28 | ||
| 29 | Cigarette lighter / Power outlet front | |
| 30 | Selector lever | |
| 31 | Rear window wiper | |
| 32 | Transmission control module | |
| 33 | Anti-theft alarm system / Power sounder | |
| 34 | Parking assist / Side blind spot alert / Infotainment system / USB socket | |
| 35 | - | |
| 36 | Info Display / Instrument cluster | |
| 37 | Infotainment system / radio |
Publicitate

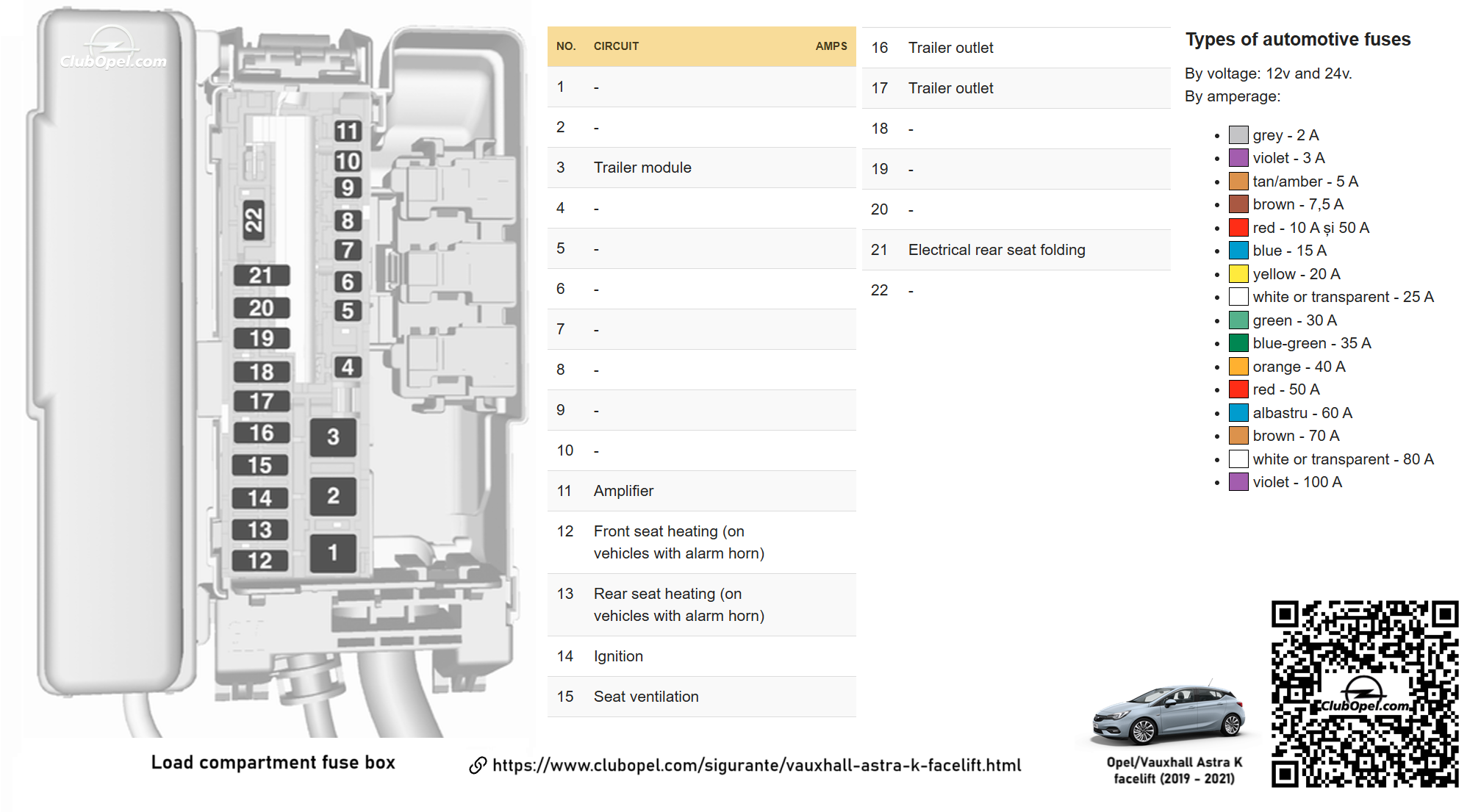

Load compartment fuse box
- The fuse box is located on the left side of the load compartment behind a cover. Remove the cover. Disengage the fuse box cover and remove it.
- After having changed defective fuses, close the fuse box cover and press until it engages.
| No. | Circuit | Amps |
|---|---|---|
| 1 | - | |
| 2 | - | |
| 3 | Trailer module | |
| 4 | - | |
| 5 | - | |
| 6 | - | |
| 7 | - | |
| 8 | - | |
| 9 | - | |
| 10 | - | |
| 11 | Amplifier | |
| 12 | Front seat heating (on vehicles with alarm horn) | |
| 13 | Rear seat heating (on vehicles with alarm horn) | |
| 14 | Ignition | |
| 15 | Seat ventilation | |
| 16 | Trailer outlet | |
| 17 | Trailer outlet | |
| 18 | - | |
| 19 | - | |
| 20 | - | |
| 21 | Electrical rear seat folding | |
| 22 | - |
Publicitate

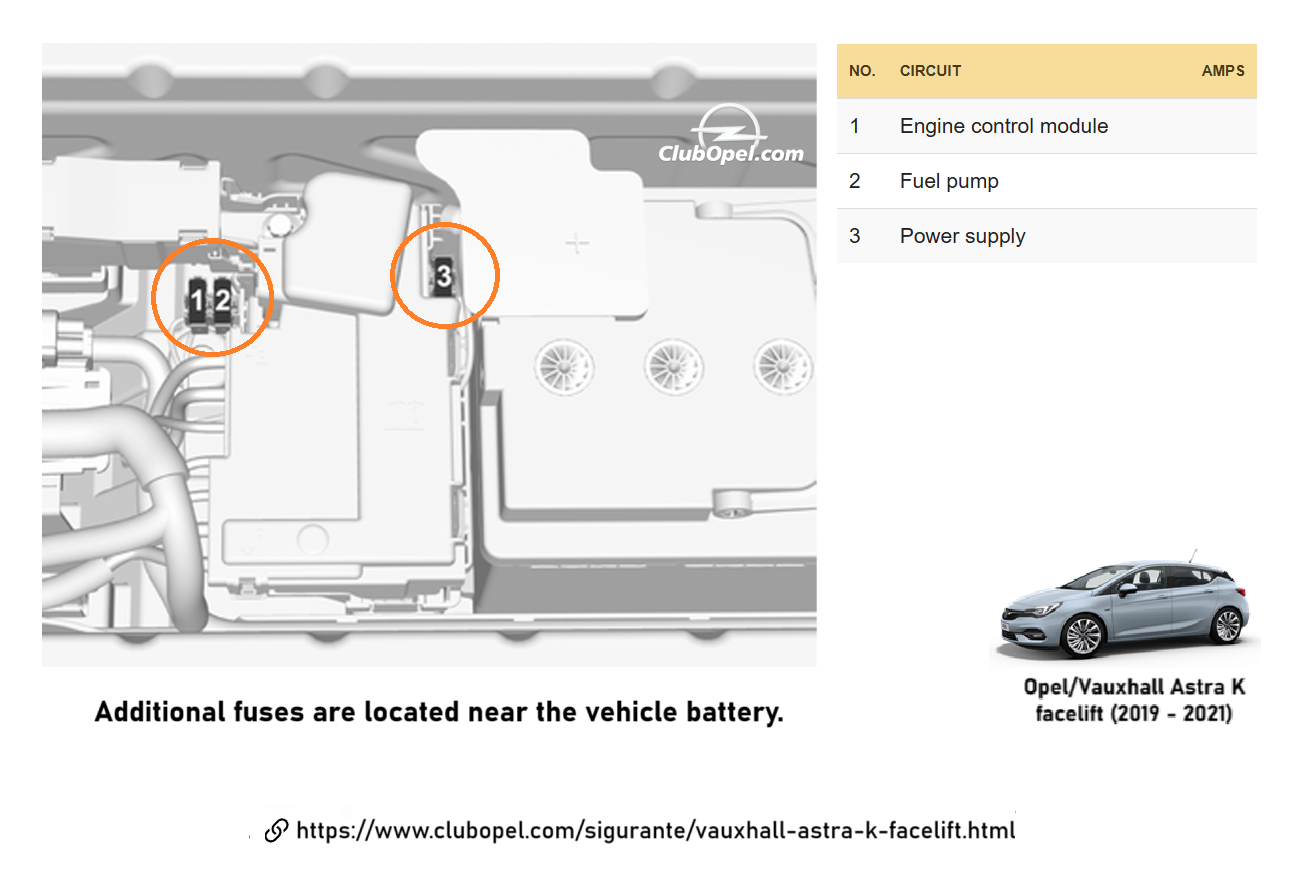

Additional fuses near the battery
- Additional fuses are located near the vehicle battery.
| No. | Circuit | Amps |
|---|---|---|
| 1 | Engine control module | |
| 2 | Fuel pump | |
| 3 | Power supply |
The information in the above tables has been scraped automatically from the user's manual and/or other sources and thus we cannot guarantee their accuracy.
You can contact us for any corrections and suggestions.
|
|
|
