General guidelines
By amperage:
Read more in the Automotive fuse wikipedia article.
- Data on the replacement fuse must match the data on the defective fuse.
- Do not replace a blown fuse before fixing the underlying issue.
- Before replacing a fuse, turn off the respective switch and the ignition.
- A blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
- Some functions are protected by several fuses.
- Fuses may also be inserted without existence of a function.
Types of automotive fuses
By voltage: 12v and 24v.By amperage:
- grey - 2 A
- violet - 3 A
- tan/amber - 5 A
- brown - 7,5 A
- red - 10 A și 50 A
- blue - 15 A
- yellow - 20 A
- white or transparent - 25 A
- green - 30 A
- blue-green - 35 A
- orange - 40 A
- red - 50 A
- albastru - 60 A
- brown - 70 A
- white or transparent - 80 A
- violet - 100 A
Read more in the Automotive fuse wikipedia article.

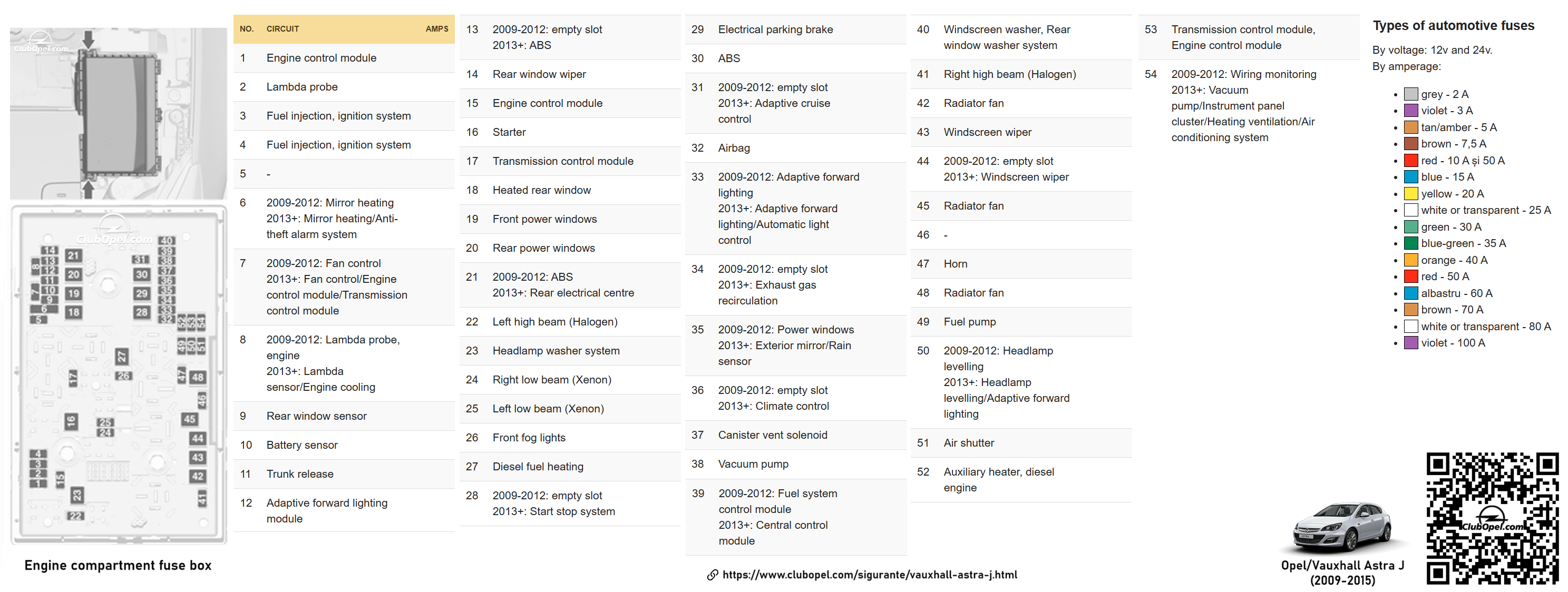

Engine compartment fuse box
- The fuse box is in the front left of the engine compartment. Disengage the cover, lift it upwards and remove.
- After having changed defective fuses close the fuse box cover and press until it engages.
| No. | Circuit | Amps |
|---|---|---|
| 1 | Engine control module | |
| 2 | Lambda probe | |
| 3 | Fuel injection, ignition system | |
| 4 | Fuel injection, ignition system | |
| 5 | - | |
| 6 |
2009-2012: Mirror heating 2013+: Mirror heating/Anti-theft alarm system |
|
| 7 |
2009-2012: Fan control 2013+: Fan control/Engine control module/Transmission control module |
|
| 8 |
2009-2012: Lambda probe, engine 2013+: Lambda sensor/Engine cooling |
|
| 9 | Rear window sensor | |
| 10 | Battery sensor | |
| 11 | Trunk release | |
| 12 | Adaptive forward lighting module | |
| 13 |
2009-2012: empty slot 2013+: ABS |
|
| 14 | Rear window wiper | |
| 15 | Engine control module | |
| 16 | Starter | |
| 17 | Transmission control module | |
| 18 | Heated rear window | |
| 19 | Front power windows | |
| 20 | Rear power windows | |
| 21 |
2009-2012: ABS 2013+: Rear electrical centre |
|
| 22 | Left high beam (Halogen) | |
| 23 | Headlamp washer system | |
| 24 | Right low beam (Xenon) | |
| 25 | Left low beam (Xenon) | |
| 26 | Front fog lights | |
| 27 | Diesel fuel heating | |
| 28 |
2009-2012: empty slot 2013+: Start stop system |
|
| 29 | Electrical parking brake | |
| 30 | ABS | |
| 31 |
2009-2012: empty slot 2013+: Adaptive cruise control |
|
| 32 | Airbag | |
| 33 |
2009-2012: Adaptive forward lighting 2013+: Adaptive forward lighting/Automatic light control |
|
| 34 |
2009-2012: empty slot 2013+: Exhaust gas recirculation |
|
| 35 |
2009-2012: Power windows 2013+: Exterior mirror/Rain sensor |
|
| 36 |
2009-2012: empty slot 2013+: Climate control |
|
| 37 | Canister vent solenoid | |
| 38 | Vacuum pump | |
| 39 |
2009-2012: Fuel system control module 2013+: Central control module |
|
| 40 | Windscreen washer, Rear window washer system | |
| 41 | Right high beam (Halogen) | |
| 42 | Radiator fan | |
| 43 | Windscreen wiper | |
| 44 |
2009-2012: empty slot 2013+: Windscreen wiper |
|
| 45 | Radiator fan | |
| 46 | - | |
| 47 | Horn | |
| 48 | Radiator fan | |
| 49 | Fuel pump | |
| 50 |
2009-2012: Headlamp levelling 2013+: Headlamp levelling/Adaptive forward lighting |
|
| 51 | Air shutter | |
| 52 | Auxiliary heater, diesel engine | |
| 53 | Transmission control module, Engine control module | |
| 54 |
2009-2012: Wiring monitoring 2013+: Vacuum pump/Instrument panel cluster/Heating ventilation/Air conditioning system |
Publicitate

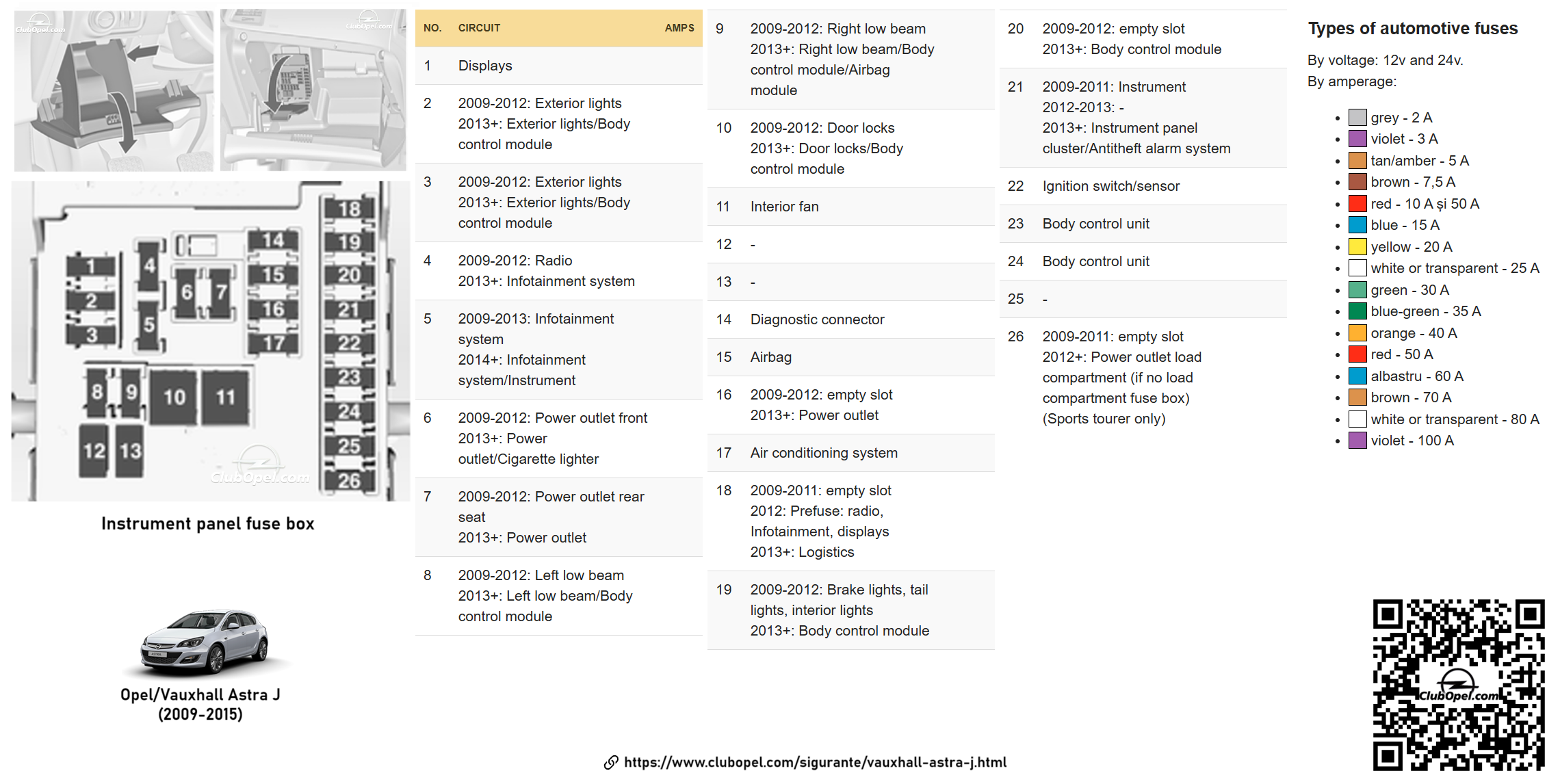

Instrument panel fuse box
- In left-hand drive vehicles, the fuse box is behind the storage compartment in the instrument panel.
- Open the compartment and push it to the left to unlock. Fold the compartment down and remove it

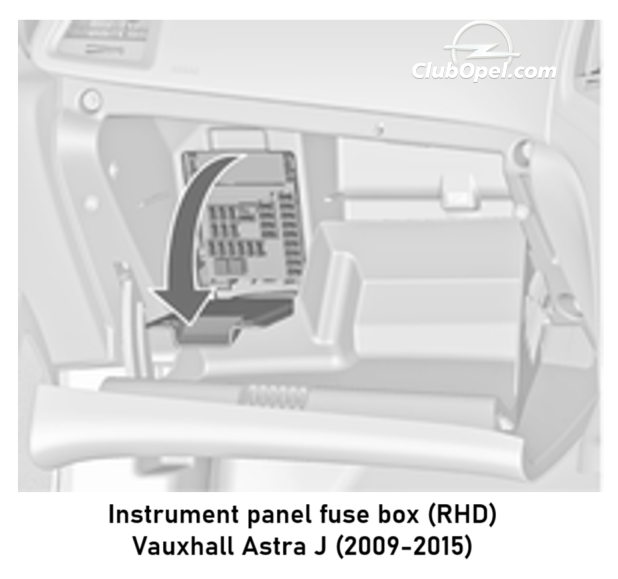

- In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox, then open the cover and fold it down.
| No. | Circuit | Amps |
|---|---|---|
| 1 | Displays | |
| 2 |
2009-2012: Exterior lights 2013+: Exterior lights/Body control module |
|
| 3 |
2009-2012: Exterior lights 2013+: Exterior lights/Body control module |
|
| 4 |
2009-2012: Radio 2013+: Infotainment system |
|
| 5 |
2009-2013: Infotainment system 2014+: Infotainment system/Instrument |
|
| 6 |
2009-2012: Power outlet front 2013+: Power outlet/Cigarette lighter |
|
| 7 |
2009-2012: Power outlet rear seat 2013+: Power outlet |
|
| 8 |
2009-2012: Left low beam 2013+: Left low beam/Body control module |
|
| 9 |
2009-2012: Right low beam 2013+: Right low beam/Body control module/Airbag module |
|
| 10 |
2009-2012: Door locks 2013+: Door locks/Body control module |
|
| 11 | Interior fan | |
| 12 | - | |
| 13 | - | |
| 14 | Diagnostic connector | |
| 15 | Airbag | |
| 16 |
2009-2012: empty slot 2013+: Power outlet |
|
| 17 | Air conditioning system | |
| 18 |
2009-2011: empty slot 2012: Prefuse: radio, Infotainment, displays 2013+: Logistics |
|
| 19 |
2009-2012: Brake lights, tail lights, interior lights 2013+: Body control module |
|
| 20 |
2009-2012: empty slot 2013+: Body control module |
|
| 21 |
2009-2011: Instrument 2012-2013: - 2013+: Instrument panel cluster/Antitheft alarm system |
|
| 22 | Ignition switch/sensor | |
| 23 | Body control unit | |
| 24 | Body control unit | |
| 25 | - | |
| 26 |
2009-2011: empty slot 2012+: Power outlet load compartment (if no load compartment fuse box) (Sports tourer only) |
Publicitate

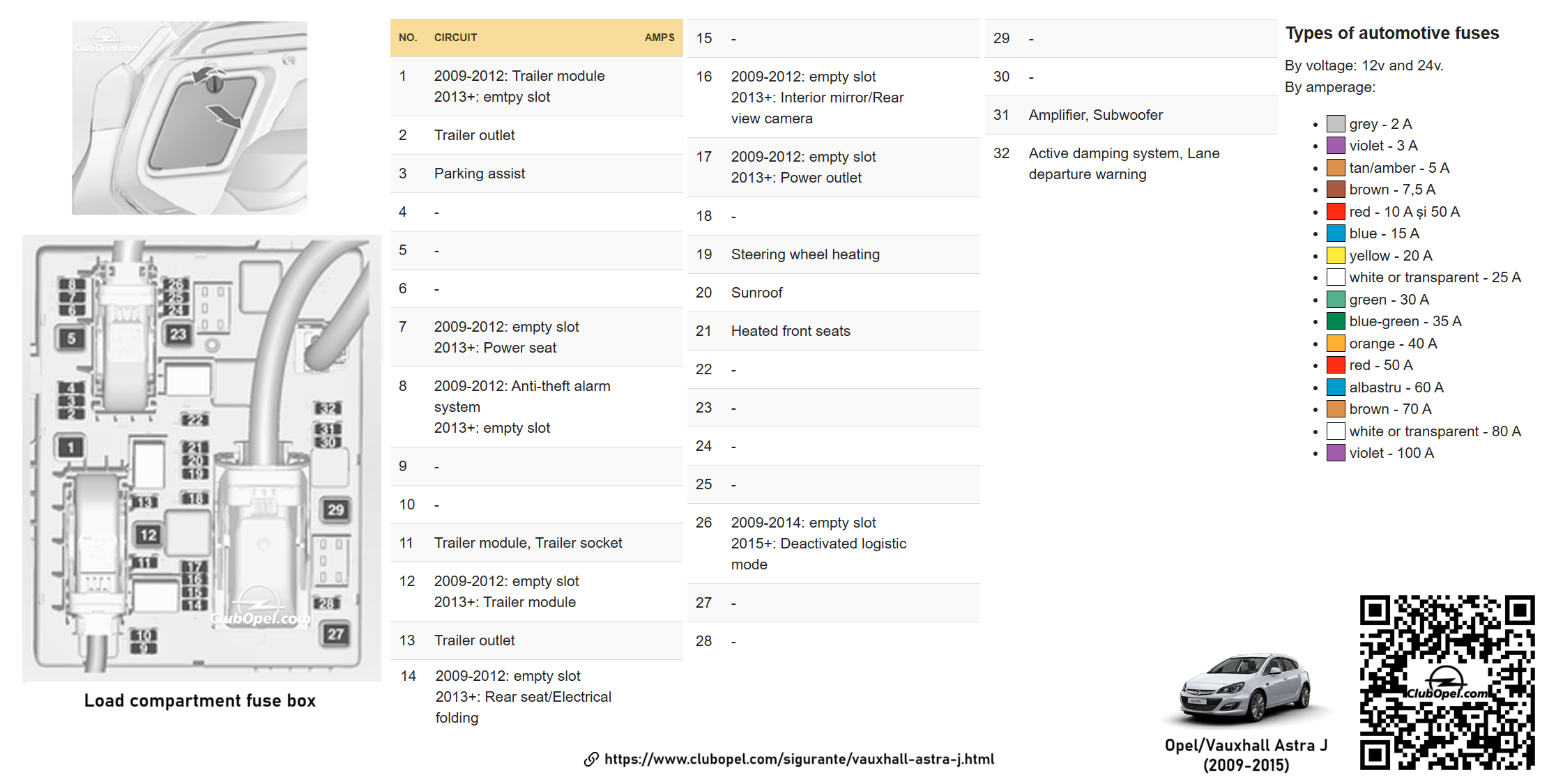

Load compartment fuse box
- The fuse box is on the left side of the load compartment behind a cover. Remove the cover.
| No. | Circuit | Amps |
|---|---|---|
| 1 |
2009-2012: Trailer module 2013+: emtpy slot |
|
| 2 | Trailer outlet | |
| 3 | Parking assist | |
| 4 | - | |
| 5 | - | |
| 6 | - | |
| 7 |
2009-2012: empty slot 2013+: Power seat |
|
| 8 |
2009-2012: Anti-theft alarm system 2013+: empty slot |
|
| 9 | - | |
| 10 | - | |
| 11 | Trailer module, Trailer socket | |
| 12 |
2009-2012: empty slot 2013+: Trailer module |
|
| 13 | Trailer outlet | |
| 14 |
2009-2012: empty slot 2013+: Rear seat/Electrical folding |
|
| 15 | - | |
| 16 |
2009-2012: empty slot 2013+: Interior mirror/Rear view camera |
|
| 17 |
2009-2012: empty slot 2013+: Power outlet |
|
| 18 | - | |
| 19 | Steering wheel heating | |
| 20 | Sunroof | |
| 21 | Heated front seats | |
| 22 | - | |
| 23 | - | |
| 24 | - | |
| 25 | - | |
| 26 |
2009-2014: empty slot 2015+: Deactivated logistic mode |
|
| 27 | - | |
| 28 | - | |
| 29 | - | |
| 30 | - | |
| 31 | Amplifier, Subwoofer | |
| 32 | Active damping system, Lane departure warning |
Publicitate
The information in the above tables has been scraped automatically from the user's manual and/or other sources and thus we cannot guarantee their accuracy.
You can contact us for any corrections and suggestions.
|
|
|
