sigurante Astra H (2004 - 2010)

Vauxhall Astra H (2004 - 2010) fuses

🇷🇴 Opel Astra H

Sigurante Astra G (1998 - 2004) Sigurante Astra J (2009 - 2015)

🇷🇴
Contents
  1. General guidelines
  2. Load compartment fuse box (type A)
  3. Load compartment fuse box (type B)
  4. Luggage compartment relays
  5. Engine compartment fuse box (type A)
  6. Engine compartment fuse box (type B)
  7. Engine compartment relays
General guidelines
  • Data on the replacement fuse must match the data on the defective fuse.
  • Do not replace a blown fuse before fixing the underlying issue.
  • Before replacing a fuse, turn off the respective switch and the ignition.
  • A blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
  • Some functions are protected by several fuses.
  • Fuses may also be inserted without existence of a function.

Types of automotive fuses

By voltage: 12v and 24v.
By amperage:
  •  grey - 2 A
  •  violet - 3 A
  •  tan/amber - 5 A
  •  brown - 7,5 A
  •  red - 10 A și 50 A
  •  blue - 15 A
  •  yellow - 20 A
  •  white or transparent - 25 A
  •  green - 30 A
  •  blue-green - 35 A
  •  orange - 40 A
  •  red - 50 A
  •  albastru - 60 A
  •  brown - 70 A
  •  white or transparent - 80 A
  •  violet - 100 A

Read more in the Automotive fuse wikipedia article.
  • The vehicle has two fuse boxes: one behind a cover on the left side of the load compartment and one in the front left of the engine compartment.
  • Depending on trim level, there are two types of fuxe bosex: type A and type B (see images below).

Load compartment fuse box (type A)

  • Saloon 5-door, Caravan, Van To open, turn both catches with a coin and fold down cover.
  • Saloon 3-door To open, fold the cover upwards.
  • Saloon 4-door To open, twist catch anti-clockwise and fold down cover.
  • Twintop/cabrio: To open, pull the two knobs, remove the clips and fold the cover upwards.
locatie sigurante portbagaj Astra H hatchback
locatie sigurante portbagaj Astra H cabrio twintop

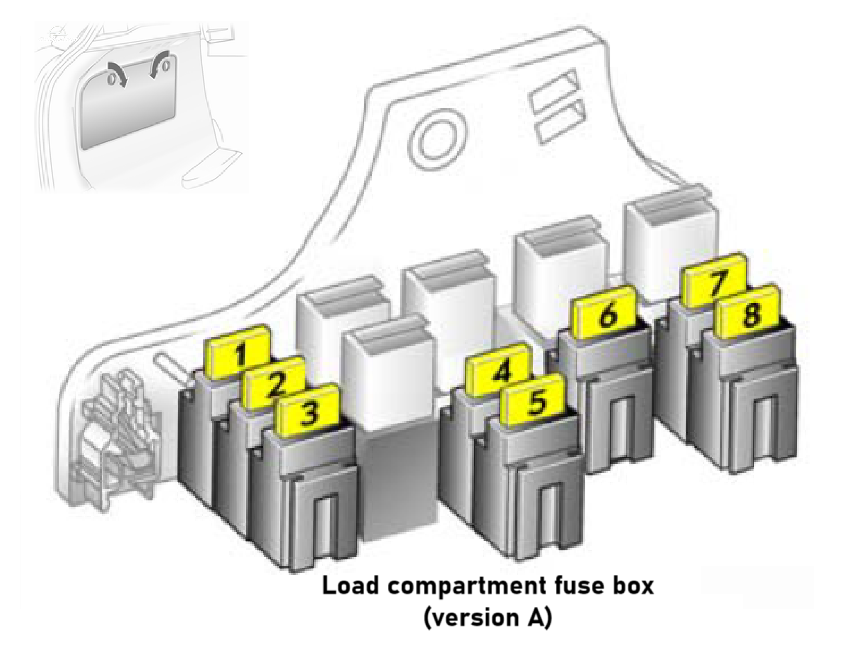

tablou sigurante portbagaj Astra H (varianta A)

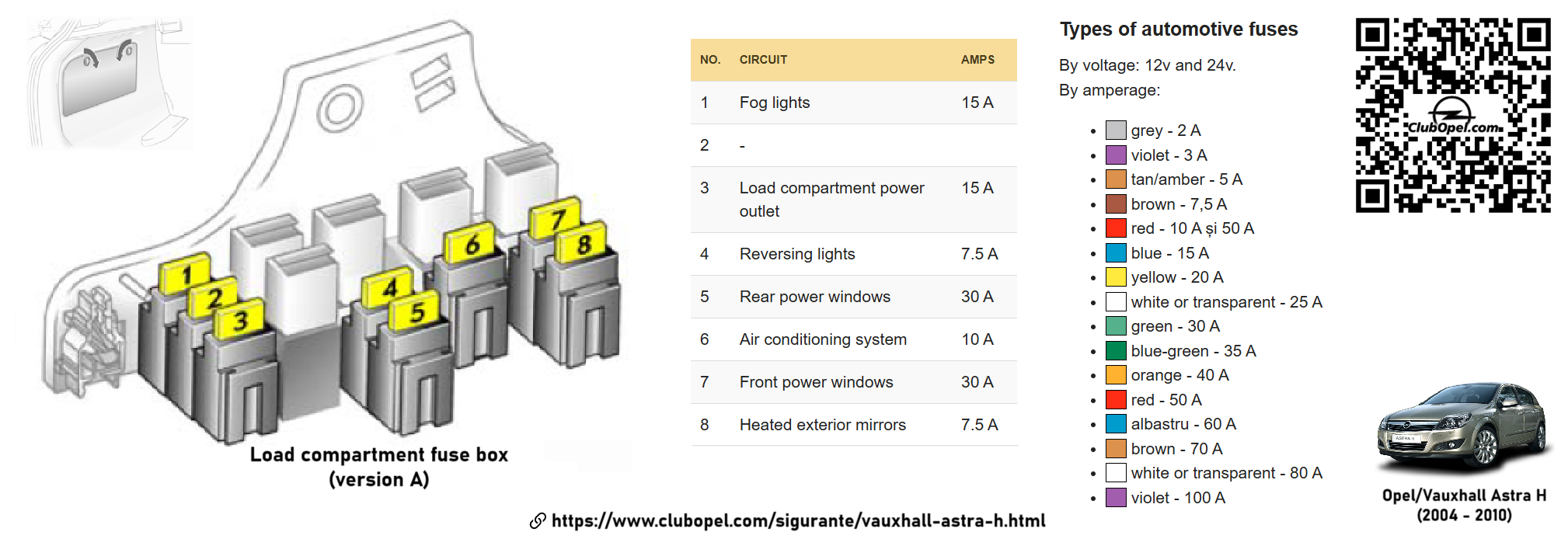

tablou sigurante portbagaj Astra H (varianta A) cu diagrama si tabel
tablou sigurante portbagaj Astra H (varianta B)

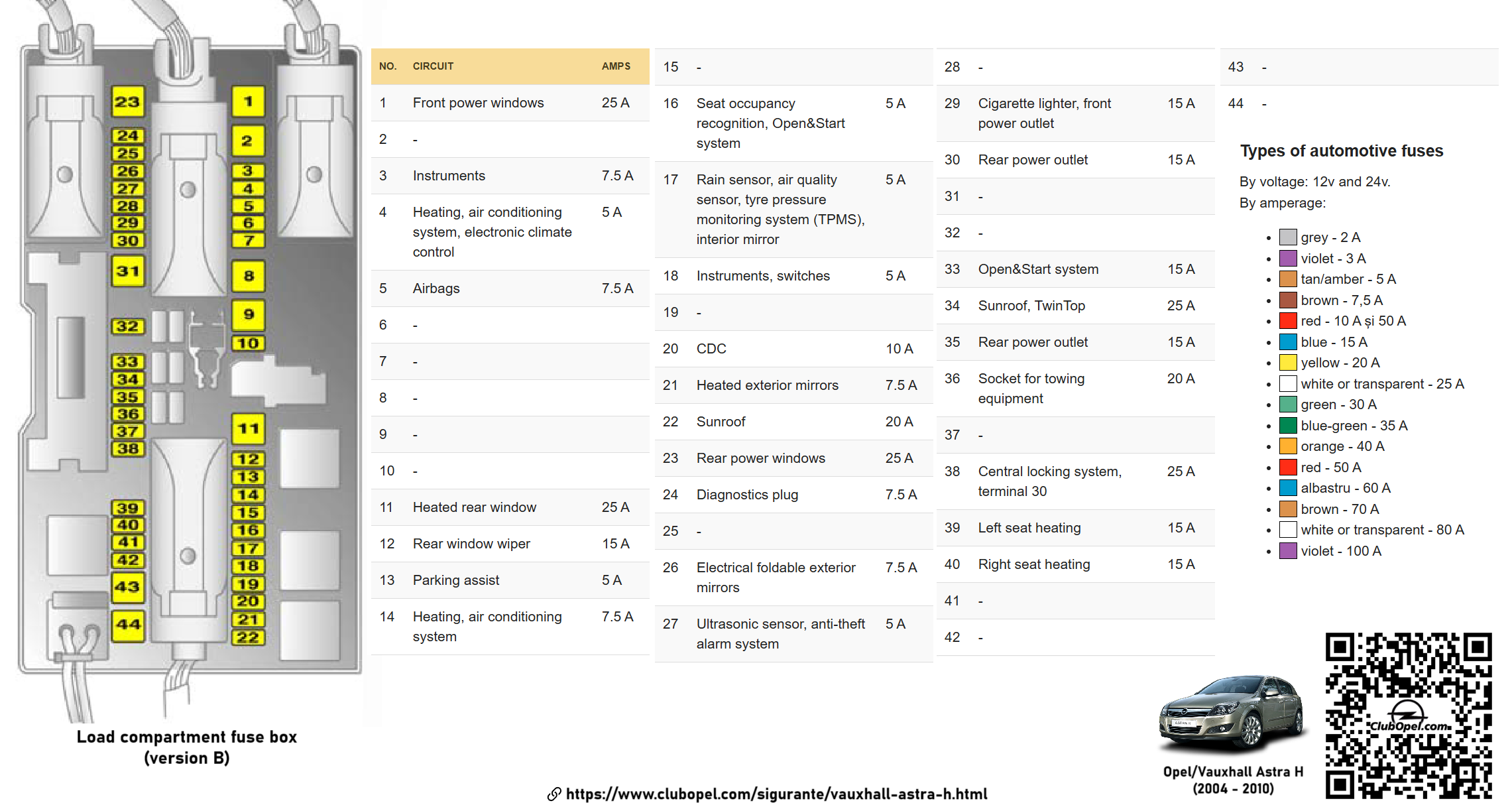

tablou sigurante portbagaj Astra H (varianta B) cu diagrama si tabel
No. Circuit Amps
1 Fog lights 15 A
2 -
3 Load compartment power outlet 15 A
4 Reversing lights 7.5 A
5 Rear power windows 30 A
6 Air conditioning system 10 A
7 Front power windows 30 A
8 Heated exterior mirrors 7.5 A

Publicitate

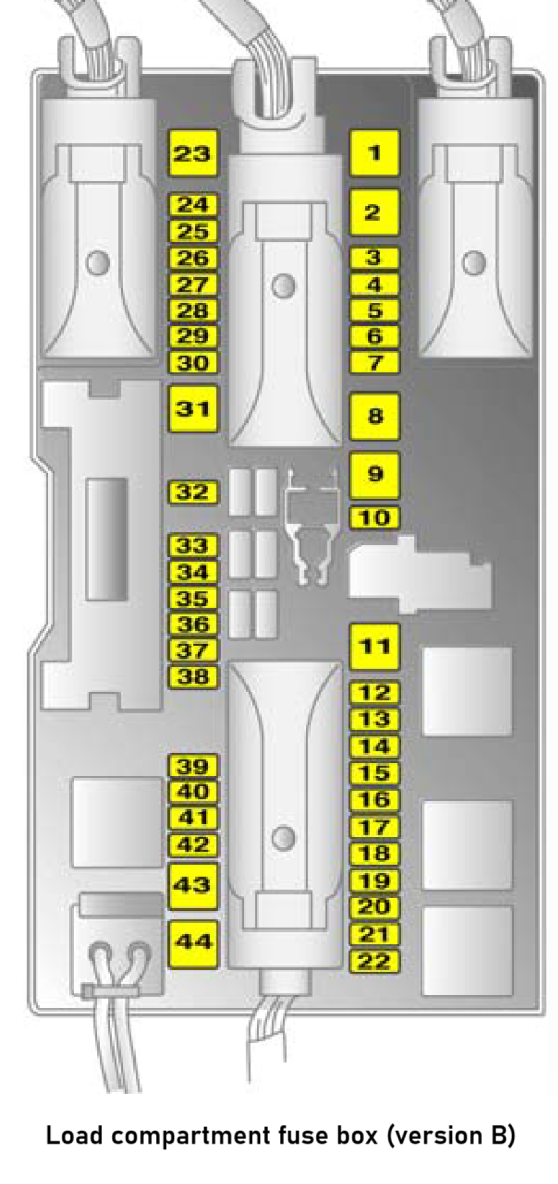

Load compartment fuse box (type B)

No. Circuit Amps
1 Front power windows 25 A
2 -
3 Instruments 7.5 A
4 Heating, air conditioning system, electronic climate control 5 A
5 Airbags 7.5 A
6 -
7 -
8 -
9 -
10 -
11 Heated rear window 25 A
12 Rear window wiper 15 A
13 Parking assist 5 A
14 Heating, air conditioning system 7.5 A
15 -
16 Seat occupancy recognition, Open&Start system 5 A
17 Rain sensor, air quality sensor, tyre pressure monitoring system (TPMS), interior mirror 5 A
18 Instruments, switches 5 A
19 -
20 CDC 10 A
21 Heated exterior mirrors 7.5 A
22 Sunroof 20 A
23 Rear power windows 25 A
24 Diagnostics plug 7.5 A
25 -
26 Electrical foldable exterior mirrors 7.5 A
27 Ultrasonic sensor, anti-theft alarm system 5 A
28 -
29 Cigarette lighter, front power outlet 15 A
30 Rear power outlet 15 A
31 -
32 -
33 Open&Start system 15 A
34 Sunroof, TwinTop 25 A
35 Rear power outlet 15 A
36 Socket for towing equipment 20 A
37 -
38 Central locking system, terminal 30 25 A
39 Left seat heating 15 A
40 Right seat heating 15 A
41 -
42 -
43 -
44 -

Publicitate


Luggage compartment relays

diagrama relee portbagaj Opel Astra H
No. Circuit Amps
1 Rear window heating (K3_X131)
2 Pin 15 (K1_X131)
3 Pin 15a (K2_X131)

Publicitate


Engine compartment fuse box (type A)

  • Insert a screwdriver into the opening as far as it will go and tilt it sideways. Open the cover upwards and remove
  • The Astra TwinTop always has version B.
  • 1) Different ratings depending on engine and equipment level.

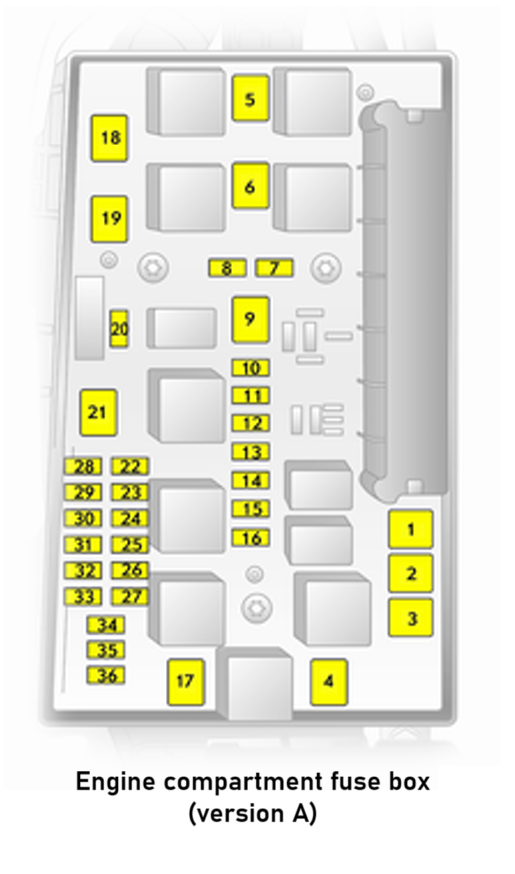

locatie sigurante motor Astra H varianta A
tablou sigurante motor Astra H varianta A
tablou sigurante motor Astra H varianta A cu diagrama si tabel
Vauxhall Astra H type A engine compartment fuse box diagram
No. Circuit Amps
1 ABS 20 A
2 ABS 30 A
3 Interior fan climate control system 30 A
4 Interior fan, heating, air conditioning system 30 A
5 Radiator fan 11) 30 A
40 A
6 Radiator fan 21) 20 A
30 A
40 A
7 Central locking system 20 A
8 Windscreen washer system, tailgate 10 A
9 Heated rear window, heated exterior mirror 30 A
10 Diagnostics plug 7.5 A
11 Instruments 7.5 A
12 Mobile telephone, Infotainment system, display 7.5 A
13 Courtesy light 5 A
14 Windscreen wiper 30 A
15 Windscreen wiper 30 A
16 Horn, ABS, brake light switch, air conditioning system 5 A
17 Diesel fuel filter or
air conditioning system 		25 A
20 A
18 Starter 25 A
19 -
20 Horn 15 A
21 Engine electronics 20 A
22 Engine electronics 7.5 A
23 Headlight range adjustment 5 A
24 Fuel pump 15 A
25 -
26 Engine electronics 10 A
27 Heating, air conditioning system, air quality sensor 7.5 A
28 -
29 Power steering 5 A
30 Engine electronics 10 A
31 Rear window wiper 15 A
32 Brake light switch 5 A
33 Headlight range adjustment, light switch, clutch switch, instrument, driver's door module 5 A
34 Control unit, steering column module 7.5 A
35 Infotainment system 20 A
36 Cigarette lighter, front power outlet 15 A


Engine compartment fuse box (type B)

  • The Astra TwinTop always has version B.
  • 1) Different ratings depending on engine and equipment level.
locatie sigurante motor Astra H varianta B
tablou sigurante motor Astra H varianta B
tablou sigurante motor Astra H varianta B cu diagrama si tabel
Vauxhall Astra H type B engine compartment fuse box diagram
No. Circuit Amps
1 ABS 20 A
2 ABS 30 A
3 Interior fan electronic climate control 30 A
4 Interior fan heating and air conditioning system 30 A
5 Radiator fan 11) 30 A
40 A
6 Radiator fan 21) 20 A
30 A
40 A
7 Windscreen washer system 10 A
8 Horn 15 A
9 Headlight washer system 25 A
10 -
11 -
12 -
13 Fog light 15 A
14 Windscreen wiper 30 A
15 Windscreen wiper 30 A
16 Control module electronics, Open&Start system, ABS, brake light switch, TwinTop 5 A
17 Diesel fuel filter heating 25 A
18 Starter 25 A
19 Transmission electronics 30 A
20 Air conditioning system 10 A
21 Engine electronics 20 A
22 Engine electronics 7.5 A
23 Adaptive forward lighting, headlight range adjustment 10 A
24 Fuel pump 15 A
25 Transmission electronics 15 A
26 Engine electronics 10 A
27 Power steering 5 A
28 Transmission electronics 5 A
29 Transmission electronics 7.5 A
30 Engine electronics 10 A
31 Adaptive forward fighting, headlight range adjustment 10 A
32 Brake system, air conditioning system, clutch switch 5 A
33 Adaptive forward lighting, headlight range adjustment, light switch 5 A
34 Control unit, steering column module 7.5 A
35 Infotainment system 20 A
36 Mobile telephone, Infotainment system, display 7.5 A


Engine compartment relays

diagrama relee compartiment motor Opel Astra H
No. Circuit Amps
K1 Radiator fan
K2 Radiator fan
K3 (K7_X125) (with REC) Headlamp washer pump
(K17_X125) (w/out REC) rear window heating
K4 (K16_X125) (with REC) Front fog lights
(K18_X125) (w/out REC) interior lighting
K5 Windshield wiper low/high
K6 Windshield wiper ON/OFF
K7 Fan, interior compartment - AC / heating
K8 (K14_X125) (with REC) Diesel fiter heating
(K8_X125) (w/out REC) AC compressor
K9 Starter
K10 Radiator fan
K11 (K9_X125) (with REC) AC compressor
(K4_X125) (w/out REC) horn sound signal
K12 Engine management controller
K13 Fuel pump
K14 Pin 15


The information in the above tables has been scraped automatically from the user's manual and/or other sources and thus we cannot guarantee their accuracy.
You can contact us for any corrections and suggestions.

Additional resources


Owners manual (EN, pdf) (p. 178)
