Vauxhall Astra G (1998 - 2004) fuses

---

Instrument panel fuse box

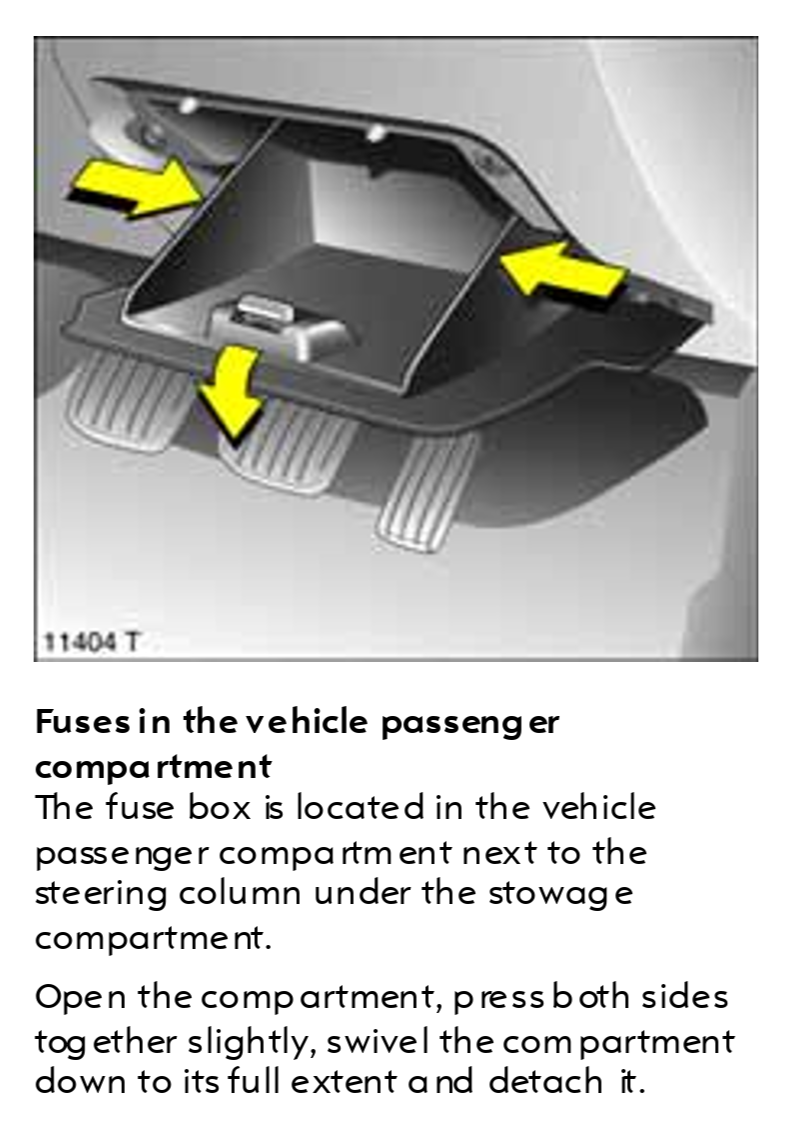

• The fuse box is behind the storage compartment in the instrument panel. Open, squeeze the side panels and pull down. Remove the box.

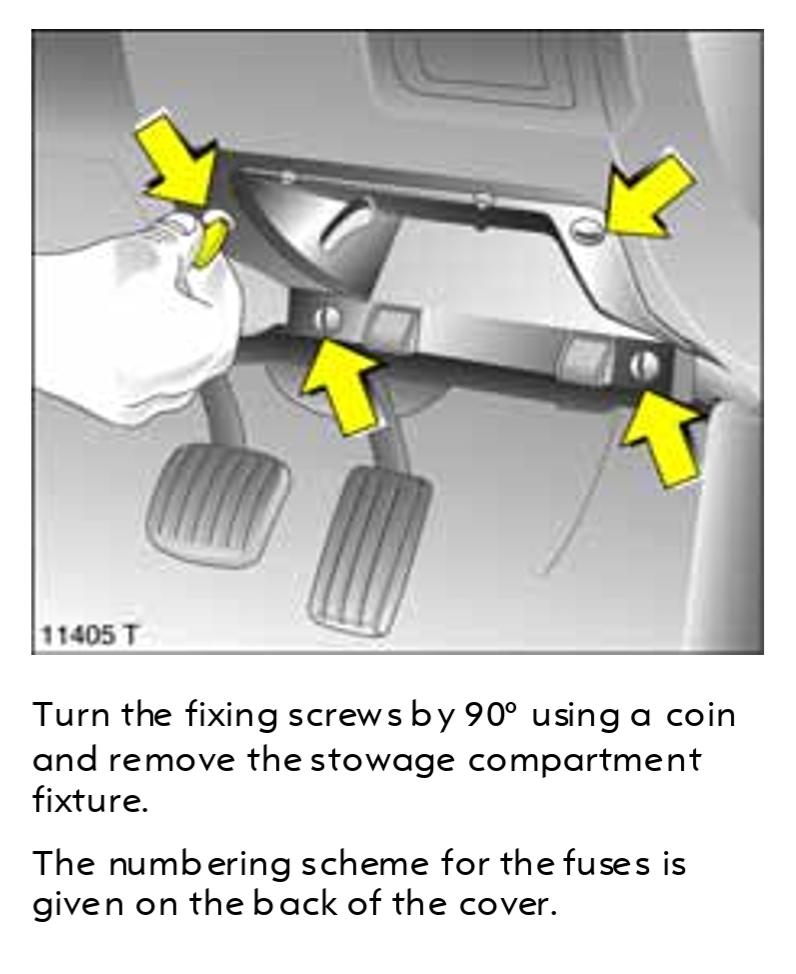

• Using a coin or flat screw driver, rotate the four plastic screws. Remove the fuse panel cover.

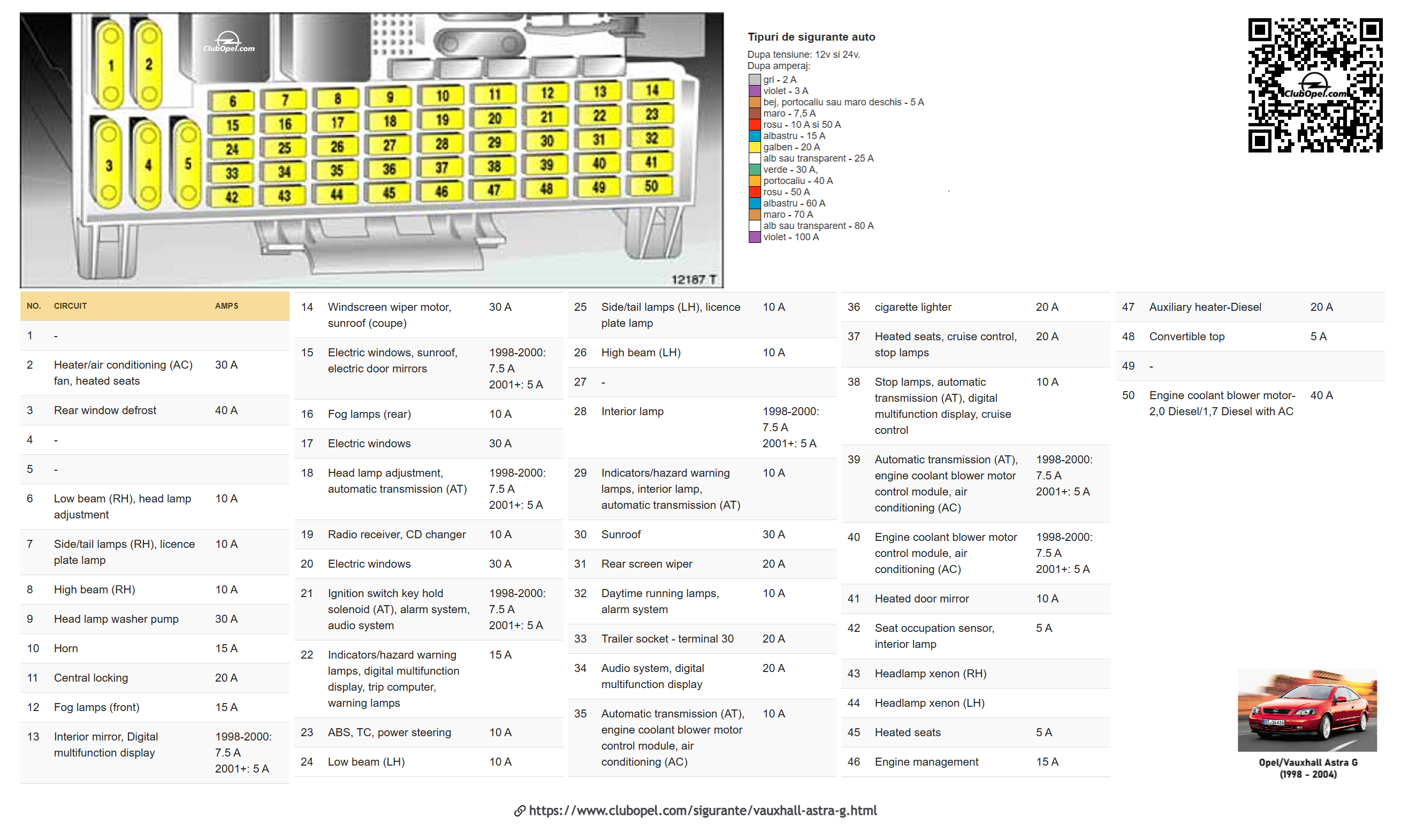

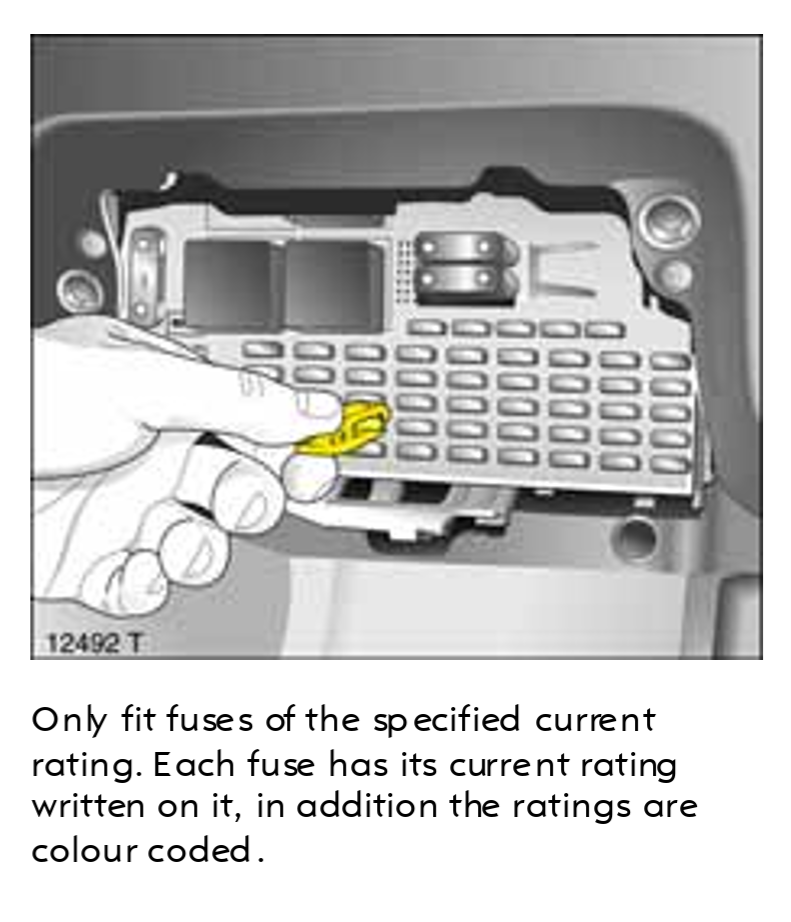

No.	Circuit	Amps
1	-
2	Heater/air conditioning (AC) fan, heated seats	30 A
3	Rear window defrost	40 A
4	-
5	-
6	Low beam (RH), head lamp adjustment	10 A
7	Side/tail lamps (RH), licence plate lamp	10 A
8	High beam (RH)	10 A
9	Head lamp washer pump	30 A
10	Horn	15 A
11	Central locking	20 A
12	Fog lamps (front)	15 A
13	Interior mirror, Digital multifunction display	1998-2000: 7.5 A 2001+: 5 A
14	Windscreen wiper motor, sunroof (coupe)	30 A
15	Electric windows, sunroof, electric door mirrors	1998-2000: 7.5 A 2001+: 5 A
16	Fog lamps (rear)	10 A
17	Electric windows	30 A
18	Head lamp adjustment, automatic transmission (AT)	1998-2000: 7.5 A 2001+: 5 A
19	Radio receiver, CD changer	10 A
20	Electric windows	30 A
21	Ignition switch key hold solenoid (AT), alarm system, audio system	1998-2000: 7.5 A 2001+: 5 A
22	Indicators/hazard warning lamps, digital multifunction display, trip computer, warning lamps	15 A
23	ABS, TC, power steering	10 A
24	Low beam (LH)	10 A
25	Side/tail lamps (LH), licence plate lamp	10 A
26	High beam (LH)	10 A
27	-
28	Interior lamp	1998-2000: 7.5 A 2001+: 5 A
29	Indicators/hazard warning lamps, interior lamp, automatic transmission (AT)	10 A
30	Sunroof	30 A
31	Rear screen wiper	20 A
32	Daytime running lamps, alarm system	10 A
33	Trailer socket - terminal 30	20 A
34	Audio system, digital multifunction display	20 A
35	Automatic transmission (AT), engine coolant blower motor control module, air conditioning (AC)	10 A
36	cigarette lighter	20 A
37	Heated seats, cruise control, stop lamps	20 A
38	Stop lamps, automatic transmission (AT), digital multifunction display, cruise control	10 A
39	Automatic transmission (AT), engine coolant blower motor control module, air conditioning (AC)	1998-2000: 7.5 A 2001+: 5 A
40	Engine coolant blower motor control module, air conditioning (AC)	1998-2000: 7.5 A 2001+: 5 A
41	Heated door mirror	10 A
42	Seat occupation sensor, interior lamp	5 A
43	Headlamp xenon (RH)
44	Headlamp xenon (LH)
45	Heated seats	5 A
46	Engine management	15 A
47	Auxiliary heater-Diesel	20 A
48	Convertible top	5 A
49	-
50	Engine coolant blower motor-2,0 Diesel/1,7 Diesel with AC	40 A

---

Driver side (or passanger side for RHD) relay fuse box

No.	Circuit	Amps
0	empty
R1	Horn relay
R2	Headlamp high beam relay
R3	Rear screen wiper relay
R4	Door mirror heater relay
R5	Fog lamps relay (front)
R6	Fog lamps relay (rear)
R7	Indicator relay (RH)
R8	Indicator relay (LH)
R9	Telephone audiosignal transmitter
R10	Signal converter module - Vehicle speed
R11	empty or n/a
R12	Windscreen wiper motor relay
R13	Heated rear window relay

---

Engine compartment fuse + relay box (LH)

No.	Circuit	Amps
1	Ignition switch (empty on some models)	60 A
2	Lights switch/Lights fuse plate	60 A
3	Fuse plate: 3, 9, 17, 19, 20, 28, 30, 33, 34, 41	60 A
4	Engine coolant blower motors 30 A (40 A for vehicles with air conditioning (AC))	20-40 A
5	ESP (or ABS on some models)	60 A
6	Engine management	20 A
7	Power steering	80 A
8	Engine functions (or Engine coolant blower motors on some models)	40 A
R1	-
R2	1998-2000: X16SZR, X18XE, X20XEV: Engine coolant blower motor relay; 2001+: Engine coolant blower motor relay (except Z12XE); Filter preheating (diesel)
R3	1998-2000: X14XE, X16XEL, Z16XE: Engine coolant blower motor relay; X12XE: Injectors; 2001+: Fuel pump relay (except Z20LET/Z22SE)
R4	Fuel pump relay (petrol engines); Y17DT: Engine control unit
R5	1998-2000: - 2001+: Engine coolant pump relay
R6	1998-2000: Engine management (diesel engines); 2001+: Engine coolant blower motor; Y17DT: spill valve
R7	Headlamps washer pump
R8	-

---

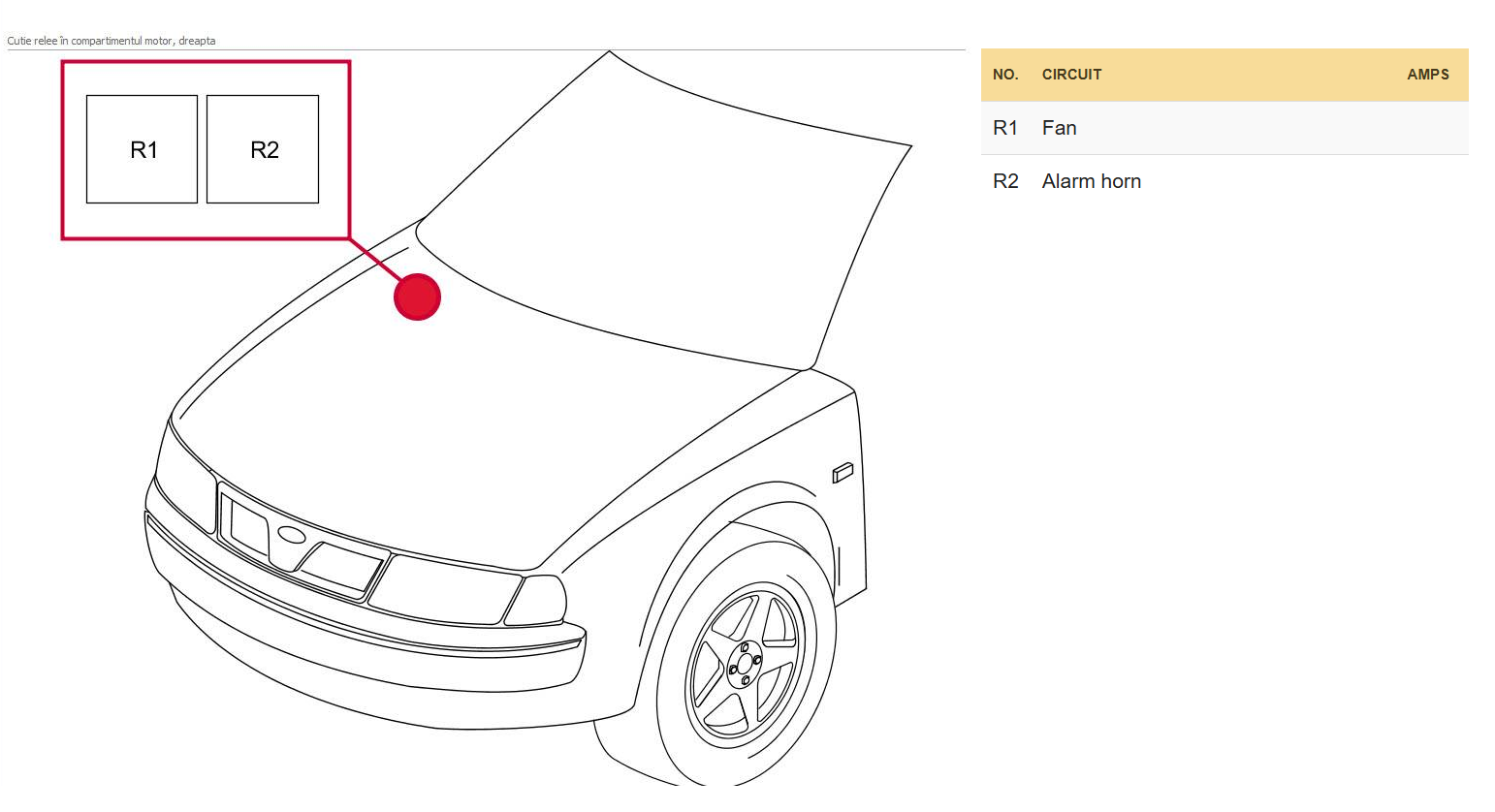

Engine compartment relay box (RH)

No.	Circuit	Amps
R1	Fan
R2	Alarm horn

---
